IMBP Series Radial Piston High Rpm Motor Hydraulic (Potest Restituo Britanniae Staffa Motor)

Home / Products / Hydraulic Motor / IMB Series Radial Piston Hydraulic Motor / IMBP Series Radial Piston High Rpm Motor Hydraulic (Potest Restituo Britanniae Staffa Motor)
  • IMBP Series Radial Piston High Rpm Motor Hydraulic (Potest Restituo Britanniae Staffa Motor)
  • IMBP Series Radial Piston High Rpm Motor Hydraulic (Potest Restituo Britanniae Staffa Motor)

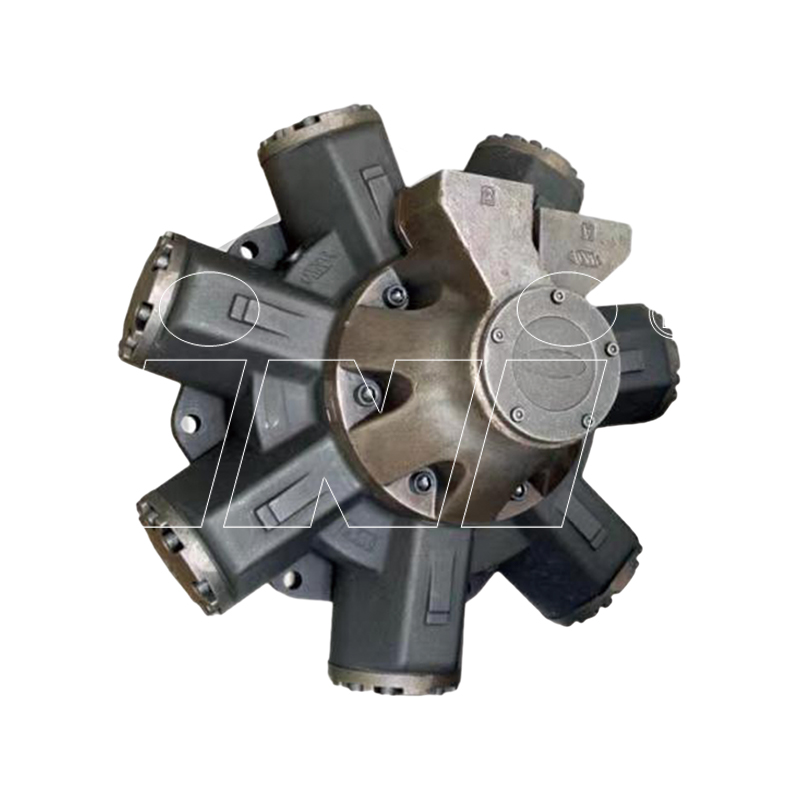

IMBP Series Radial Piston High Rpm Motor Hydraulic (Potest Restituo Britanniae Staffa Motor)

IMBP series motoris hydraulica commoda crankshaft applicans rodam motoris hydraulicae et laminae distribuentis e domo et foris trahit, augens efficientiam voluminis et gradus pressionis. Haec series motoria evolvit compactam et elegantem figuram, altam efficientiam et volutricam potentiam, sonum humilem, et operantem bonum. Ideo late applicatum est navem, constructionem, petroleum, fodienda, artem geologicam, navem et machinam ornatam.
Dispensator laminam accommoda, exhaurire inferiora, et efficientiam voluminis altam.
Statica pressio statera compages inter iuncturam harundinis et connexionem virgae, inde, iuncturam fictionem lenit et pressionem harundinis emittit.
Propter diminutionem fictionis laboris et caloris detrimentum, mechanica et inchoatio auget efficientiam, et etiam vis operationis melioris.
Hastile huius seriei fissionis structuram adhibet ad vitam mobilem trahendam.
Omnes partes clavium huius seriei speciali materiali utuntur et speciali calore tractandi utuntur, ideoque efficienter vitam mobilem trahentes.
Cum dimensio et observantia notitiarum huius seriei eaedem sint ac series HNB Staffa Societatis Britannicae, hoc substituere potuit HMB..
Contact Us Download

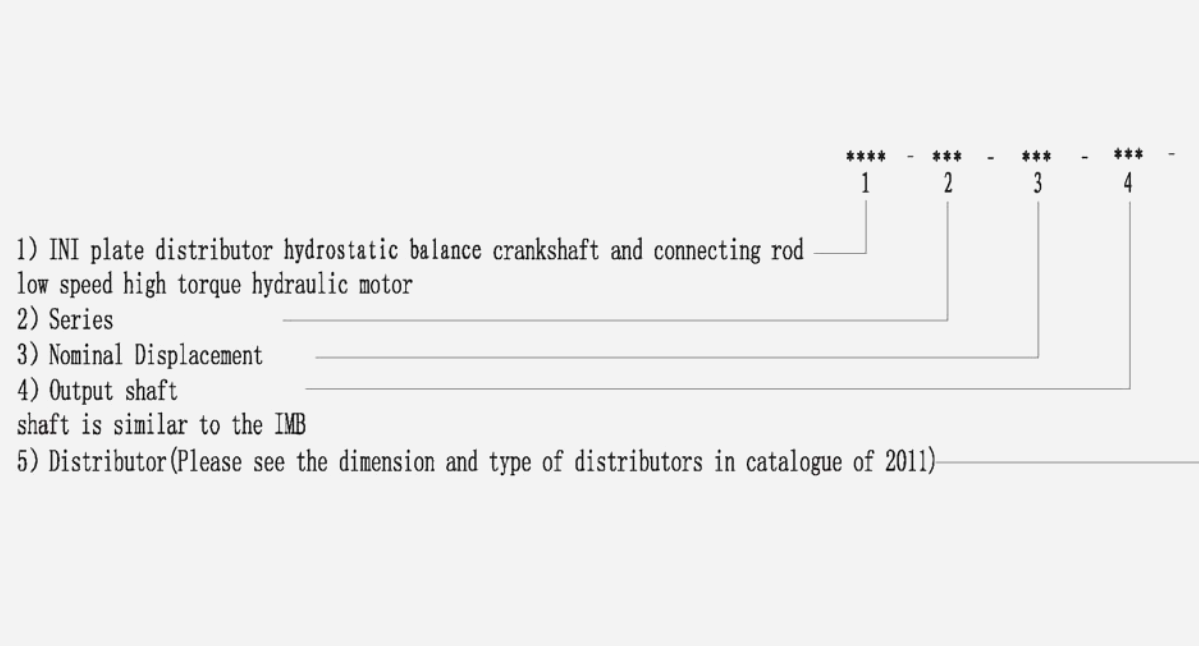

Ordinare Code

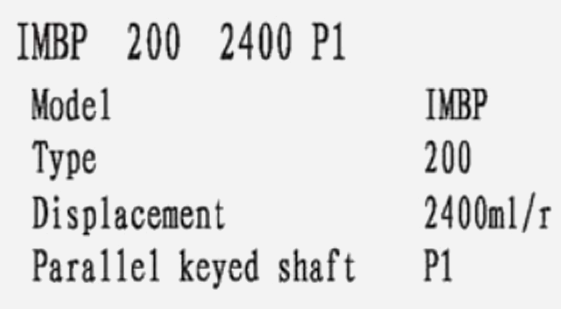

Exemplum：

EXEMPLUM (ml/r)
THEORICAE TRANSLATIO 		(MPa)
RATED PRESSIO 		(MPa)
PECUS PRESSIO 		(N.m)
RATED TORQUE 		(N.m/MPa)
IN SPECIE TORQUE 		(r/min)
MLX.SPED 		(Kw)
RATED PW* 		(kg)
PONDUS
IMBP200-2400 2432 23 29 8182 356 220 120 285
IMBP200-2800 2757 23 29 9276 403 195 120
IMBP200-3100 3080 23 29 10362 451 175 120
IMBP270-3300 3291 23 29 11072 481 160 130 420
IMBP270-3600 3575 23 29 12028 523 145 130
IMBP270-4000 3973 23 29 13367 581 130 130
IMBP270-4300 4313 23 29 14511 631 120 130
