INl Rei sumus inter artifices professionales et quales artifices hydraulicos in Sinis.
Product Description:
HW potiones series pro vehiculis patent fructus societatis nostrae. Maxime compositum est ex piston axialis motoris, olei distributoris vel valvae scandali, hydraulicae normaliter clausae multi- fractionis, ulti- tagium planetarium reducens, normaliter clausum pneumaticum lacessit, artus, tympanum, stipes sustentationis, etc. , valvae tutelae, pectinis valvae, onus et valvae exonerantes, etc. Ob eius congruentiam cum plectro trunco, non solum consilium systematis hydraulicum simplicior, sed etiam certitudinem agitationis emendavit. Praeterea habet etiam functiones mensurandi tensionem, celeritatem, facultatem tympani, celeritatem commodabilem, funem manualem cum lacessit, etc. Commoda habet structurae compactae, parvitatem, levem, summus potentiae densitatem, pulchram. apparentia, etc. Tensio hujus seriei productorum est 5Kn-500Kn, cum integris specificationibus et varietates diversorum. Ergo series late applicata ad vehiculis salvage levandis, vehiculis crucis-regionibus, bellicis aliquet gravibus, et bulldozers. Adhiberi potest ad varias vehiculas quassatas vel implicatas in limo eruere ac etiam ad gravia trahere et ad sui conservationem adhibita. Series HW winch pro vehiculis in Sinis bene vetusta fuit, etiam a maioribus domesticis specialibus vehiculi fabricantibus agnita est.
Options exemplum:

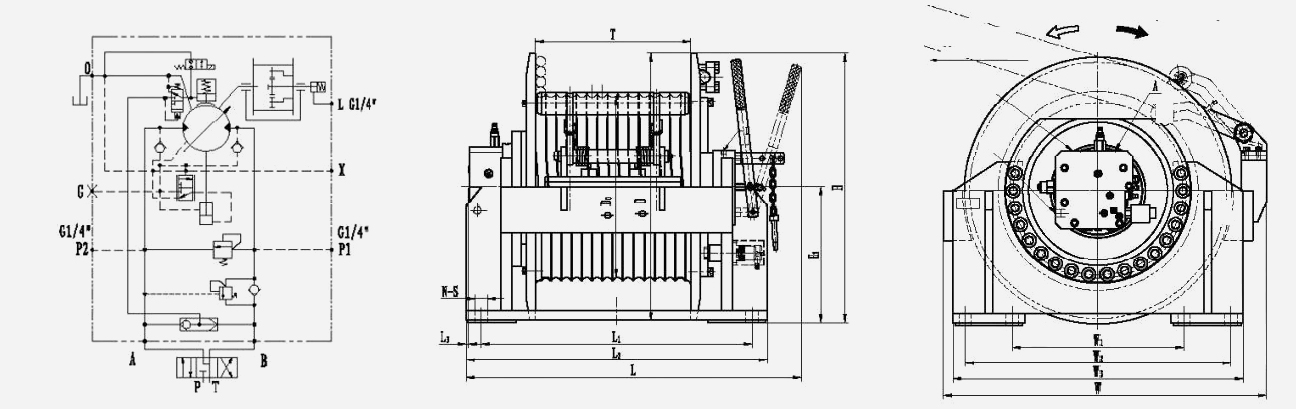

| Vide codicem | Primum viverra | Primum funem velocitate | Totalis obsessio | Operatio pressura (Mpa) | Copia olei fluxus (L/min) | Funis diam (mm) | Layer | capacitas funiculus | Ratio Gearbox | Super dimensiones et oleum portum specifications | |||||||||||||||||||||
| Gravis onus (KN) | leve onus (KN) | Gravis onus (KN) | leve onus (KN) | Gravis onus (KN) | leve onus (KN) | Do | D | T | L₁ | L₂ | L₃ | L | W1 | W2 | W3 | W | H1 | H | N | S | A、B | 0 | |||||||||
| HW100A | 100 | - | 11 | - | 7120.7 | - | 21 | 90 | 16 | 2 | 45 | 137.2 | 295 | 386 | 378 | 636 | 688 | 5 | 693 | 217 | 331 | 433 | 503 | 200 | 393 | 8 | φ26 | G3/4"33333333" | G3/8 | ||
| HW150A | 150 | 50 | 10-12 | 23-27 | 12231.3 | 5596 | 17~25 | 115 | 22 | 4 | 104 | 139.9 | 370 | 555 | 431.3 | 670 | 728 | 31 | 854 | 340 | 544 | 605 | 649 | 282 | 559 | 8 | φ26 | G3/4 | G1/2 | ||
| HW200A | 200 | 30～50 | 6.2～8 | 17~28.5 | 14160 | 6488 | 17~25 | 110 | 22 | 4 | 110 | 162.2 | 370 | 555 | 431.3 | 670 | 728 | 131 | 859 | 340 | 544 | 605 | 669 | 297 | 559 | 8 | φ29 | M33x2 | M18x1.5 | ||
| HW250A | 250 | - | 7.4 | 16.3 | 22769.6 | 10432.8 | 22 | 120 | 26 | 4 | 100 | 260 | 470 | 695 | 402 | 473 | 695 | 39 | 863 | 486 | 650 | 755 | 840 | 411 | 758 | 16 | φ22 | G3/4" | G1/2 | ||
| HW250B | 250 | 50 | 7.4 | 24.5 | 23005 | 6880 | 17~20 | 120 | 26 | 4 | 105 | 215 | 470 | 695 | 402 | 704 | 783 | 125 | 908 | 445 | 691 | 781 | 841 | 368 | 715 | 8 | φ32 | M33x2 | M18x1.5 | ||
| HW280A | 280 | 70 | 7 | 25 | 23424 | 6295 | 22-23 | 120 | 28 | 4 | 105 | 146.4 | 470 | 750 | 441 | 780 | 840 | 25 | 840 | 475 | 715 | 810 | 879 | 425 | 800 | 16 | φ26 | G3/4" | G1/2 | ||
| HW280B | 280 | 70 | 6 | 13 | 22769.6 | 10432.8 | 15~25 | 97 | 28 | 4 | 105 | 260 | 470 | 750 | 441 | 780 | 840 | 146 | 986 | 416 | 656 | 750 | 830 | 380 | 755 | 16 | φ26 | M33x2 | M27x2 | ||
| HW300A | 300 | 50 | 7 | 27.5 | 23424 | 5856 | 19~26 | 120 | 28 | 4 | 96 | 146.4 | 470 | 750 | 441 | 733 | 780 | 184 | 964 | 440 | 658 | 750 | 886 | 380 | 755 | 8 | φ32 | M33x2 | M26x1.5 | ||
| HW315A | 315 | 60 | 6.9 | 25.4 | 26857 | 7530 | 21~25 | 130 | 28 | 4 | 105 | 251 | 470 | 750 | 441 | 787 | 856 | 71 | 942 | 540 | 680 | 800 | 869 | 420 | 795 | 16 | φ32 | M33x2 | M18x1.5 | ||
| HW400A | 400 | 100 | 4.5 | 11.5 | 45920 | 17220 | 20~22 | 126 | 32 | 4 | 96 | 287 | 555 | 835 | 436 | 742 | 799 | 201 | 1000 | 605 | 829 | 899 | 946 | 423 | 840 | 16 | φ32 | M33x2 | M27x2 | ||
| HW450A | 450 | 150 | 4.5 | 7 | 43071.6 | 27610 | 15~25 | 117 | 34 | 5 | 100 | 251 | 555 | 963 | 357 | 780 | 860 | 146 | 1006 | 680 | 940 | 1023 | 1103 | 492 | 973 | 24 | φ33 | M27x2 | G1/2" | ||
| HW500A | 500 | 100 | 7.3 | 11.7 | 49249.2 | 31570 | 17-27 | 185 | 40 | 4 | 90 | 287 | 630 | 1030 | 412 | 885 | 955 | 237 | 1192 | 720 | 950 | 1090 | 1090 | 590 | 105 | 16 | φ32 | φ30 | G1/2 | ||
Producta comparata ab inceptis claris ab usoribus penitus creditae sunt.
Annos Industry Usus
Factory Area
Doctus Employees
Provectus Productio Linea
INI Hydraulic Co., Ltd. hydraulic winches, hydraulic motoribus et planetarum inter viginti annos specialisati sunt. We are one of the professional Construction Machinery Accessory Suppliers in Asia. Customizing to optimize customers' ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers' needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.
Fiducia productorum nostrorum valde in variis applicationibus probata est, non limitata machinae industriae, machinae constructionis, machinae navis & ornatae, apparatum littus, fodienda et metallurgica machina.
Praeterea productum qualitas nostra per plures terrarum inclitorum corporum testimonium approbata est. Testimonia, quae fructus nostri consecuti sunt, includunt EC-Type Examinationis certificatorium, BV INSTITUTUM, DNV GL Certificate, EC Attestationis Conformitatis, certificatorium Type Approval pro Marine Product et Lloyd's Register Quality Assurance. Hactenus, praeter Sinas, mercatum nostrum domesticum, fructus nostros late exportavimus in Civitatibus Foederatis, Germania, Nederlandia, Australia, Russia, Turcia, Singapore, Iaponia, Corea Meridiana, Malaysia, Vietnam, India et Irania. Logistics et post-venditio officia nostra totum mundum prompte et fideliter operiunt de profundis clientibus nostris.
Fructus nostri consecuti sunt, includuntur EXAMINATIO EC-Type certificatorium, BV, INSTITUTUM, DNV, GL Certificate, EC Conformitatis testimonium, certificatorium Type Approval pro Marine Product et Lloyd's Register Quality Assurance.
