IMB Series Radial Hydrostatic Libra Hydraulic Motor (Potest Restituo Britanniae Staffa Motor)

Home / Products / Hydraulic Motor / IMB Series Radial Piston Hydraulic Motor / IMB Series Radial Hydrostatic Libra Hydraulic Motor (Potest Restituo Britanniae Staffa Motor)
  • IMB Series Radial Hydrostatic Libra Hydraulic Motor (Potest Restituo Britanniae Staffa Motor)
  • IMB Series Radial Hydrostatic Libra Hydraulic Motor (Potest Restituo Britanniae Staffa Motor)

IMB Series Radial Hydrostatic Libra Hydraulic Motor (Potest Restituo Britanniae Staffa Motor)

pressio superior, celeritas superior, superior potentia.
● Statera hydrostatica aedificata est inter occasum con- virga et eccentricum solvendo problema motoris hydraulici scapi superioris potentiae con- virgae a cylindro oppressae, ergo haec motor altiorem pressionem habet. superior, superior.
● Peculiari curatione processu et trutina hydrostatica inter con-rocleum et piston, attritionem damnum in transmissione oneris minuunt, vim minuunt inter parietem piston et cylindrici, et postea minuunt attritionem iacturam inter piston et murum cylindrici.
● Anconius anulus sigillum specialibus structuris utitur ad frictionem reducendam et ad efficientiam voluminis emendandam.
● Hastile distributor in trutina hydrostatic usus, distributor gyrum sine nexu potest, efficientiam volumetricam emendare, strepitum et resistentiam minuere.
● Characteres et notae similes Staffa.
Ob has utilitates in omnibus systematibus transmissionibus hydraulicis late applicatum est ut navis et machinae machinae constructionis machinis et instrumentis iniectio machinarum plasticarum - machinarum metallurgicarum gravis. figura et notae notae similes Staffa et HMB sunt, ita IMB in signum imports.
Contact Us Download

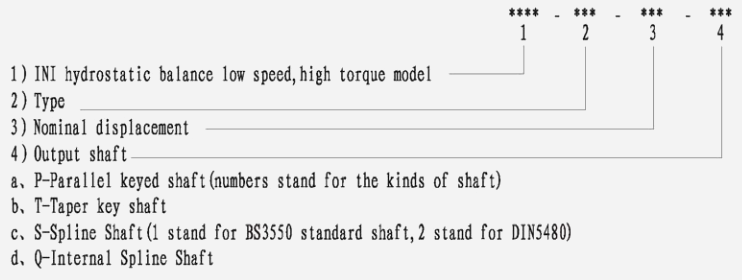

Codex ordinans:

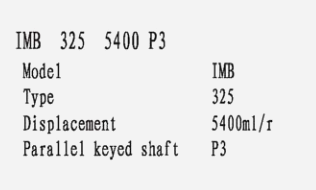

Example:
EXEMPLUM (ml/r)
THEORICUM DISPLACEMENT 		(MPa)
RATED pressionem 		(MPa)
ACUMEN pressione 		(N.m)
RATBD TORQUE 		(N.m/MPa)
IN SPECIE TORQUE 		(r/min)
MAX.SPEED 		(Kw)
RATED PW* 		(kg)
WIGHT
IMB080-1000 988 23 29 3324 145 300 90 144
IMB080-1100 1088 23 29 3661 159 300 90
IMB080-1250 1237 23 29 4162 181 280 90
IMB100-1400 1385 23 29 4660 203 260 100 144
IMB100-1600 1630 23 29 5484 238 240 100
IMB125-1400 1459 23 29 4909 213 300 95 235
IMB125-1600 1621 23 29 5454 237 270 95
IMB125-1800 1864 23 29 6271 273 235 95
IMB125-2000 2027 23 29 6820 297 220 95
IMB200-2400 2432 23 29 8182 356 220 120 285
IMB200-2800 2757 23 29 9276 403 195 120
IMB200-3100 3080 23 29 10362 451 175 120
IMB270-3300 3291 23 29 11072 481 160 130 420
IMB270-3600 3575 23 29 12028 523 145 130
IMB270-4000 3973 23 29 13367 581 130 130
IMB270-4300 4313 23 29 14511 631 120 130
IMB325-4500 4538 23 29 15268 664 115 130 420
IMB325-5000 4992 23 29 16795 730 105 130
IMB325-5400 5310 23 29 17865 777 100 130
IMB400-5500 5510 23 29 18135 788 120 175 495
IMB400-6000 5996 23 29 19735 858 120 175
IMB400-6500 6483 23 29 21337 928 120 175
IMB400-6800 6807 23 29 22404 974 120 175
