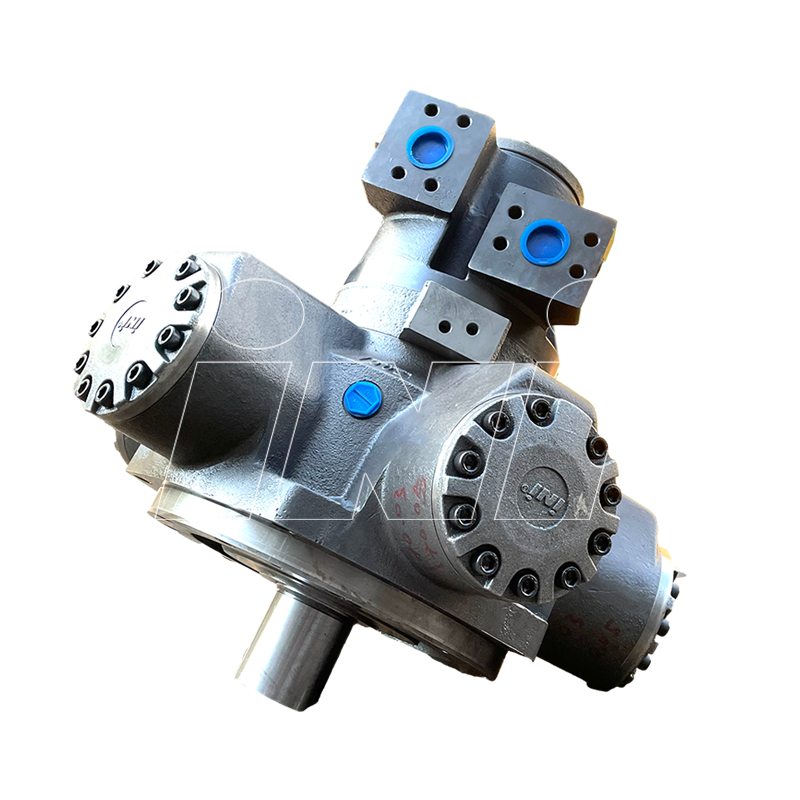

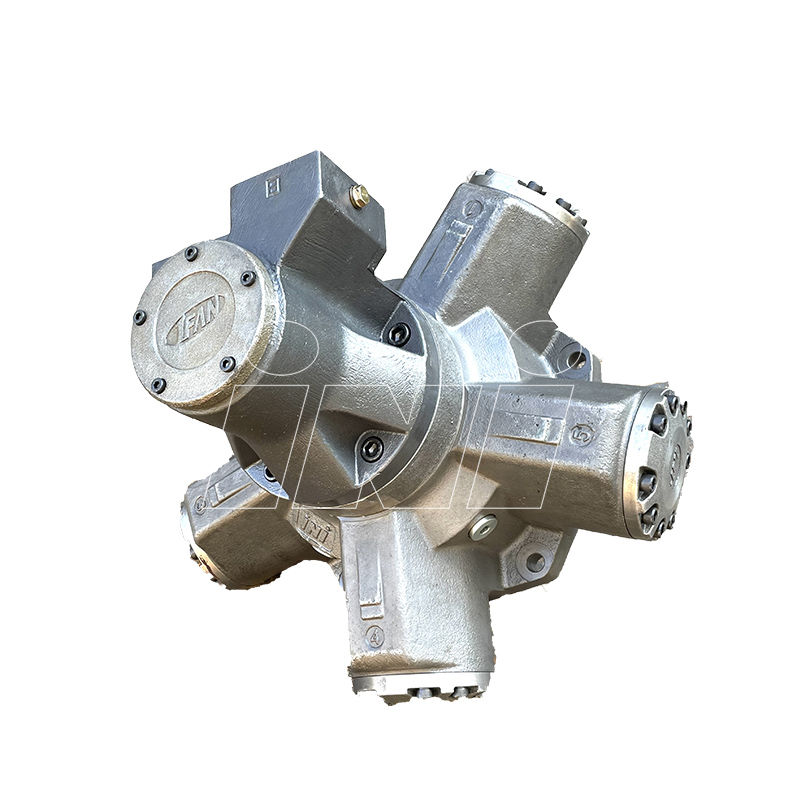

IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)

Home / Products / Hydraulic Motor / IMC Series Radial Piston Hydraulic Motor / IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)
  • IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)
  • IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)
  • IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)
  • IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)

IMC Series aculeis Static Pressure Libratum variabilis HYDRAULICUS motor (Potest restituo Britanniae STAFFA motor)

Series IMC hydraulica motoria consequitur IMB seriem proportionis hydrostaticae structurae motoris, efficientiae altae, principii torques alti, efficientiae volutricis altae, etc. Series IMC duo-celeritate motoria hydraulica utentes efficit ut eligatur requisita obsessio pro amplis condicionibus specialibus operandi. . Users obsessionem flectere possunt utendo potestate remota vel manu manuali utendo valvae dominii motoribus. Dispositio facile mutari potest, motore adhuc currente
Contact Us Download

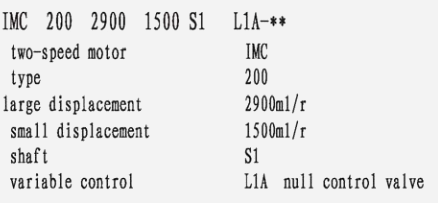

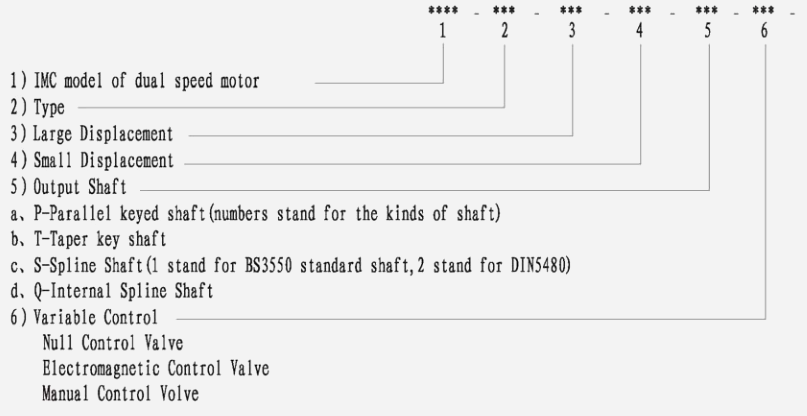

Codex ordinans:
Example:
EXEMPLUM: IMC100
APPELLATIO TRANSLATIO 1600 1500 1400 1300 1200 1100 1000 900 800 700 600 500 400 300 200 100
ml / r *
TRANSLATIO 		1580 1481 1383 1284 1185 1086 987 889 790 691 592 494 395 296 197 98/0
N.M/Mp a
IN SPECIE TORQUE 		225 212 198 184 169 155 140 125 108 94 78 68 45 30 18 0
r/min
MAX.CONT.SPEED 		260 270 280 300 330 370 405 485 540 540 540 540 540 540 540 900
KW
MAX.CONT.POWER 		99 98 96 93 90 84 82 79 74 69 57 46 35 23 10 0
KM
MAX.CONT.POMER 		120 117 113 109 105 100 97 93 87 81 68 54 40 28 14 0
Mpa
MAX.CONT.PRESTITUO 		21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE 		25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 15

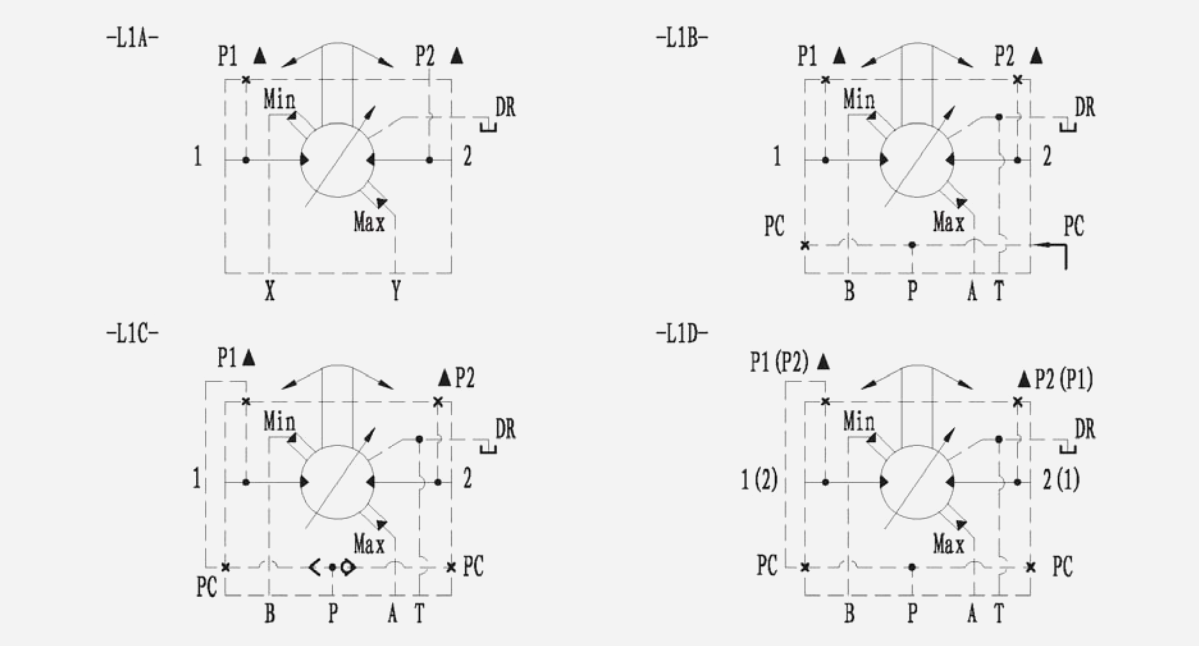

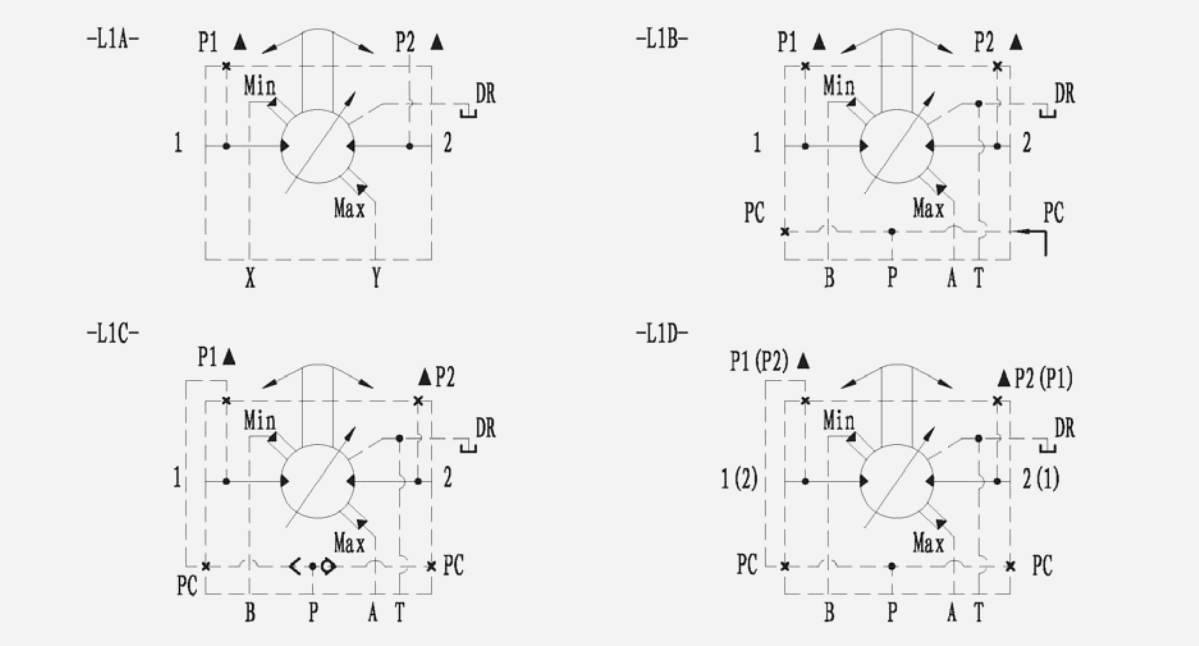

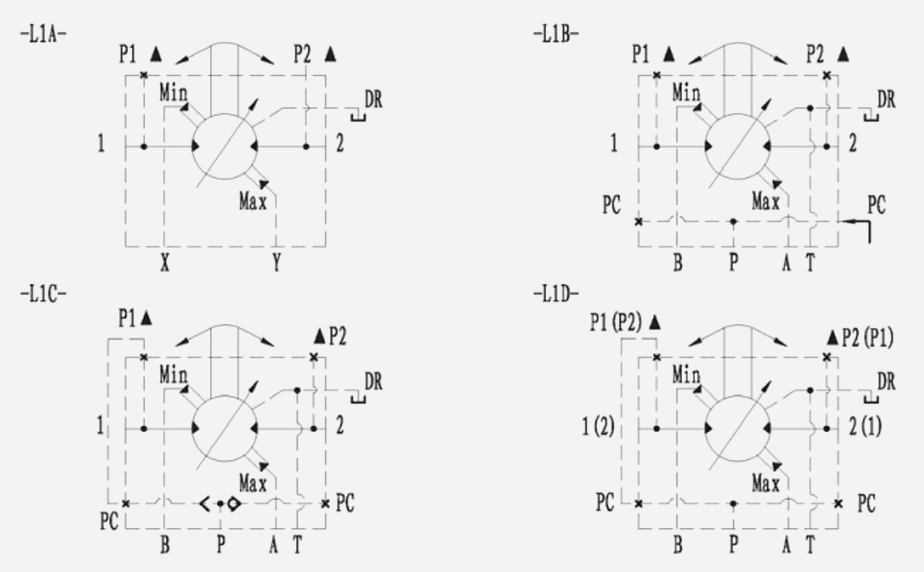

Eget symbola

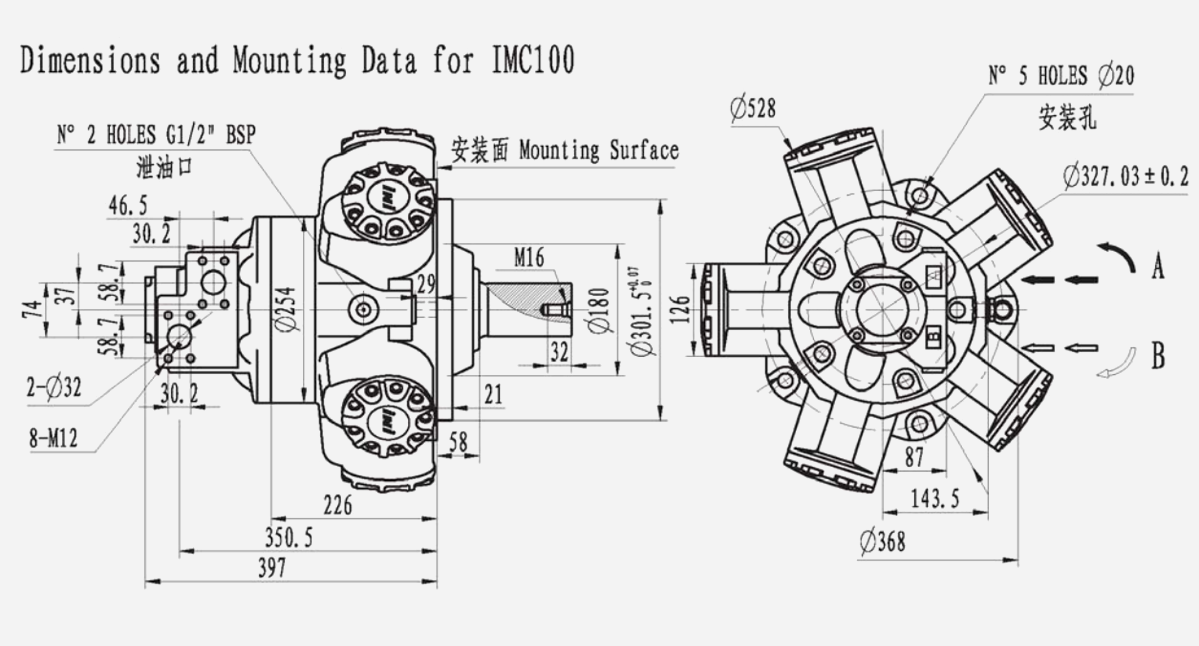

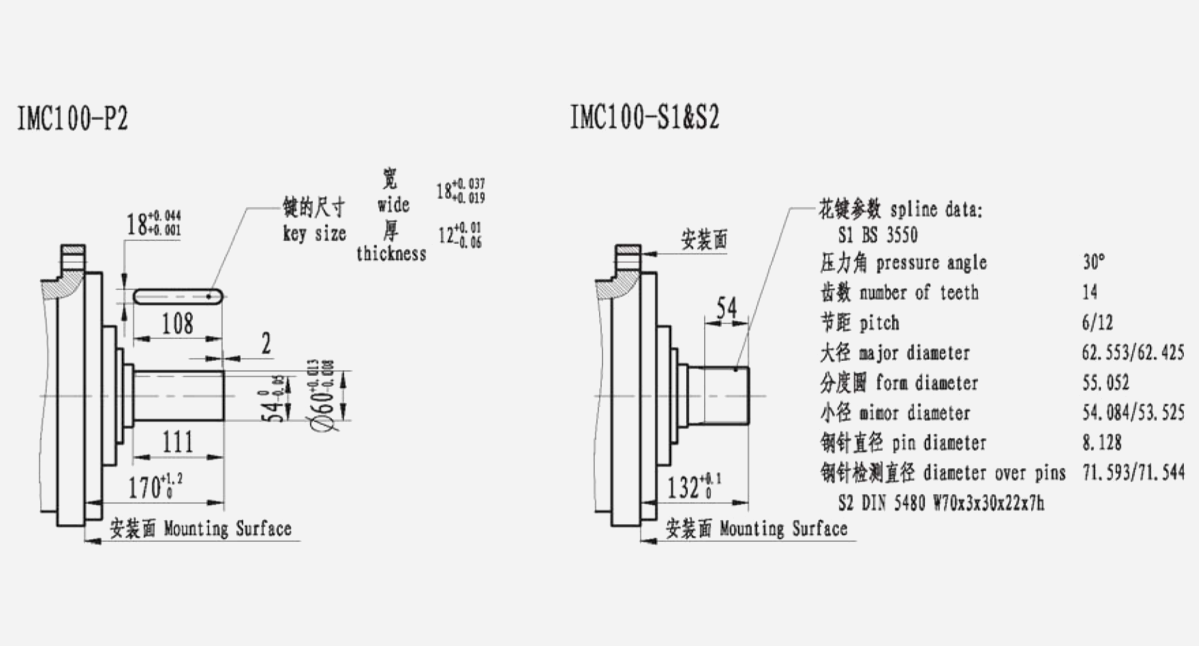

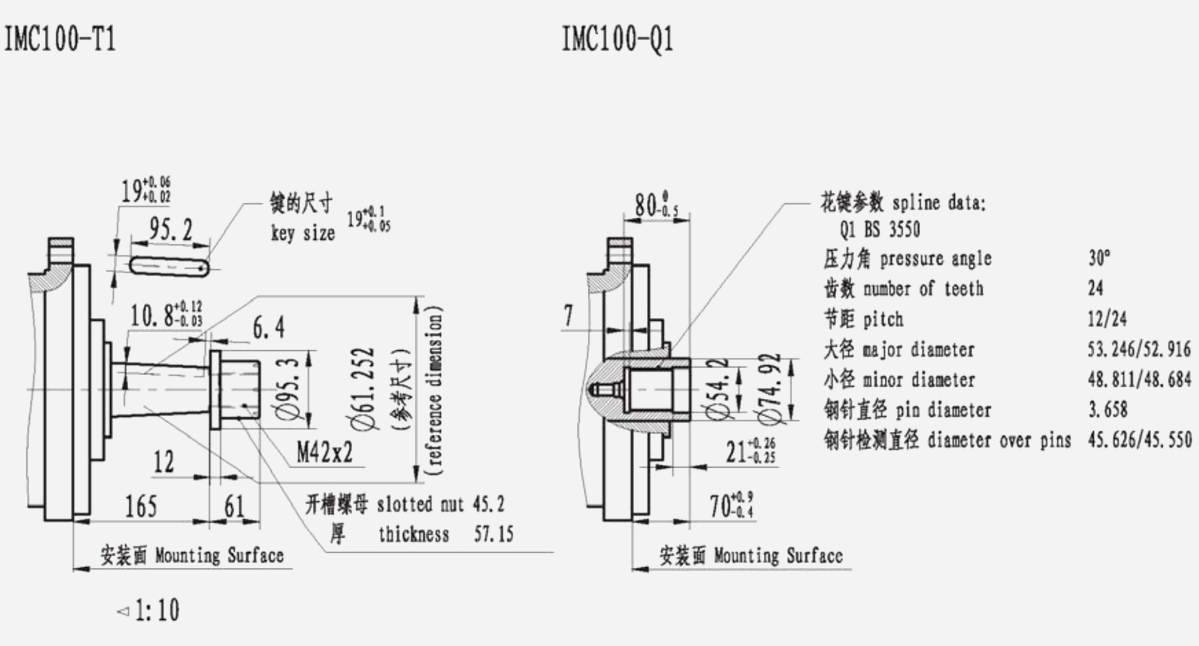

Dimensiones adscendens Data pro IMC100：

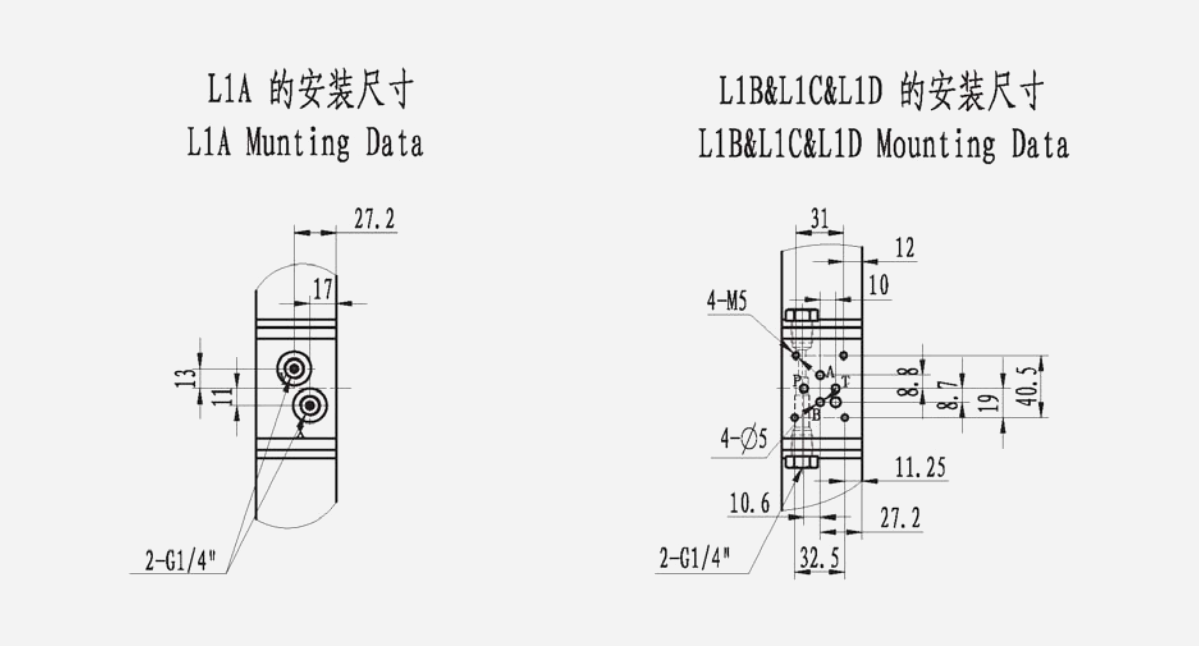

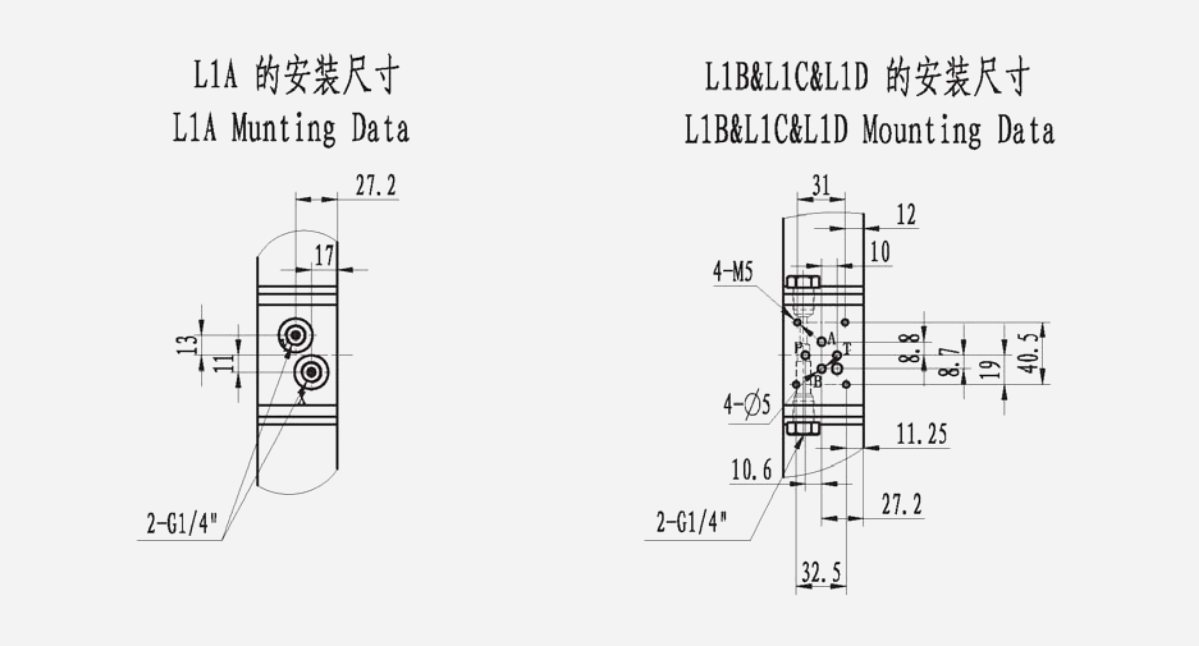

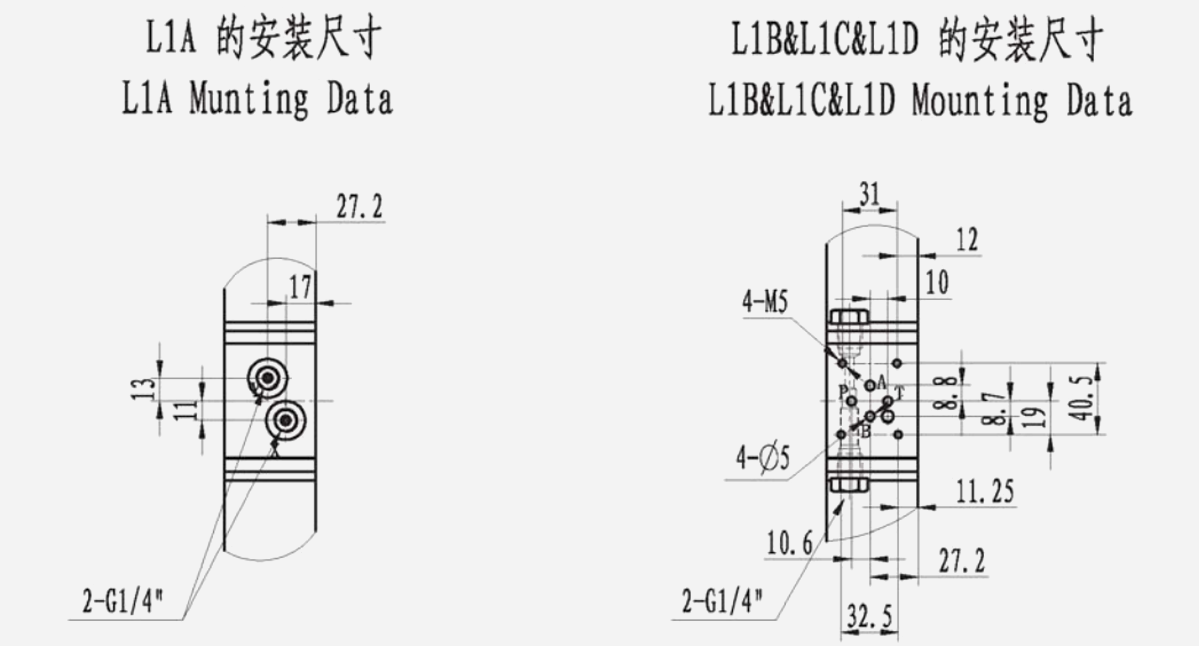

Variabilis Imperium scriptor Adscendens Data


TYPE: IMC125
APPELLATIO APPELLATIO 2100 2000 1800 1600 1500 1300 1200 1000 830 670 510 350 190 110
ml / r *
TRANSLATIO 		2066 1973 1811 1649 1487 1325 1163 1001 839 677 515 353 191 109/0
N.M/Mpa
IN SPECIE TORQUE 		293 281 258 231 206 180 154 125 100 79 57 39 6 0
r/min
MAX.CONT.SPEED 		170 175 190 210 230 265 305 350 395 485 540 540 540 900
KW
MAX.CONT.POWER 		91 89 83 77 71 66 60 55 48 42 33 16 3 0
KM
MAX.CONT.POWER 		106 104 99 95 90 85 79 73 65 57 44 28 5 0
Mpa
MAX.CONT.PRESSURE 		21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE 		25 25 25 25 25 25 25 25 25 25 25 25 25 15

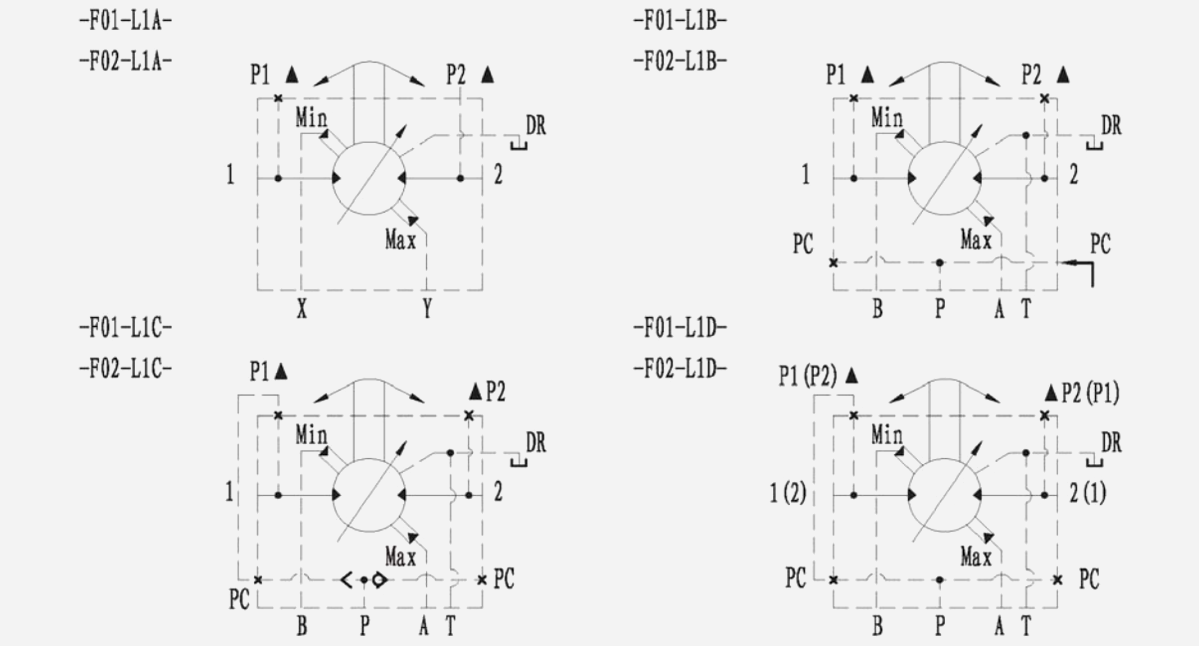

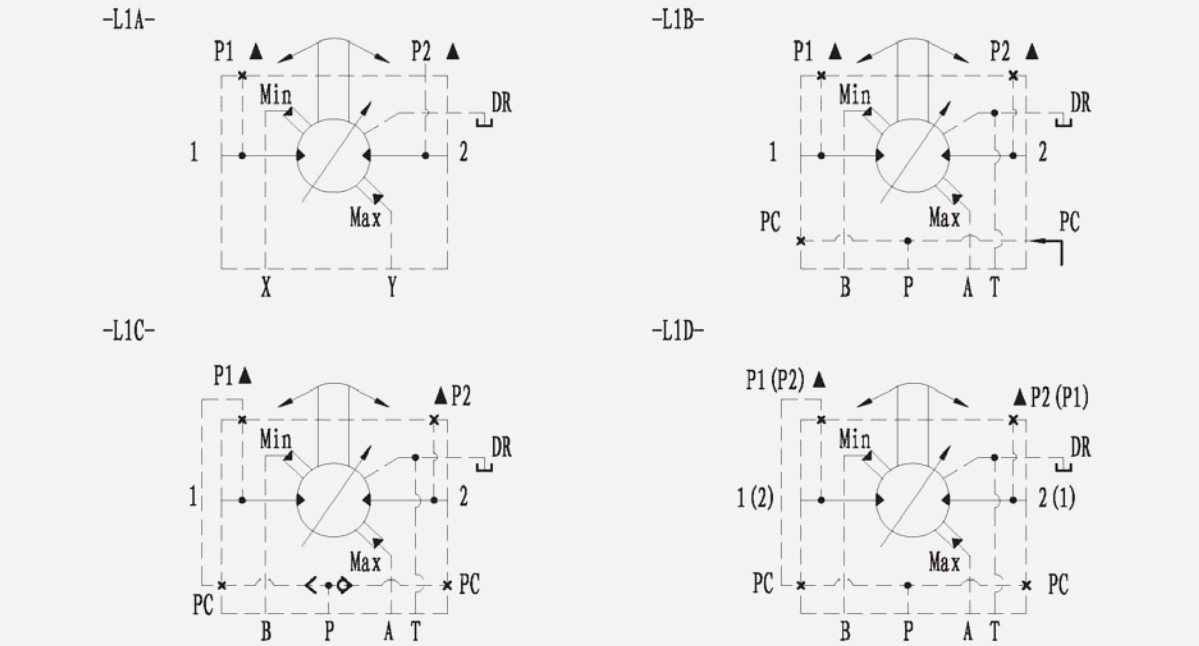

Eget symbola

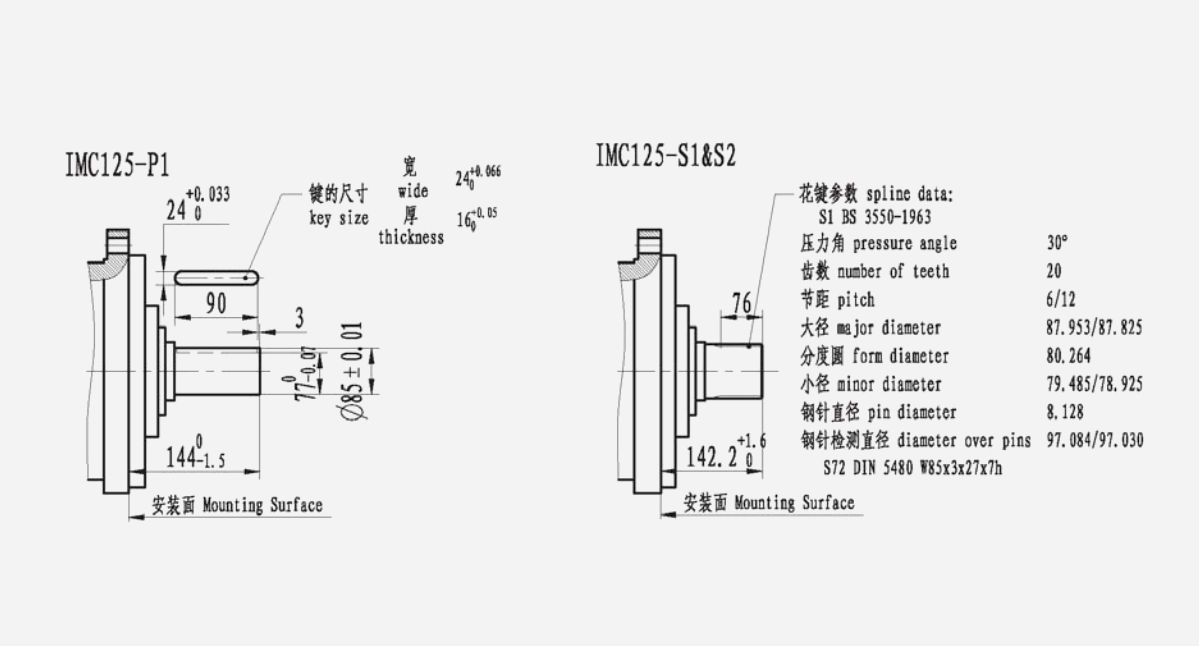

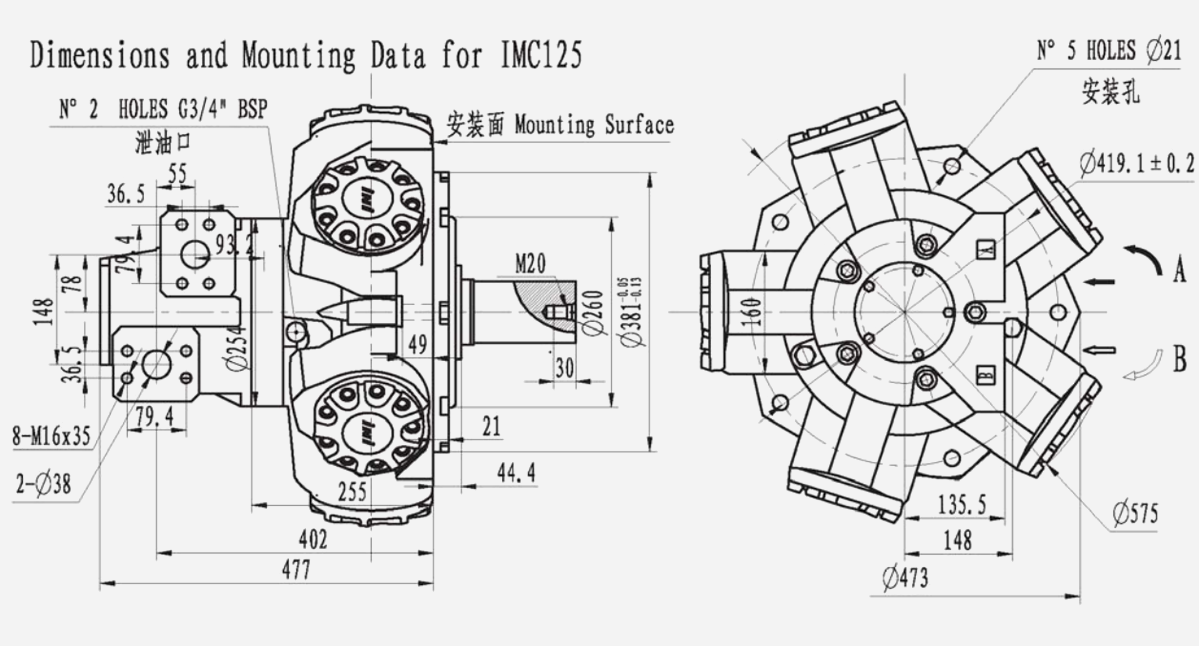

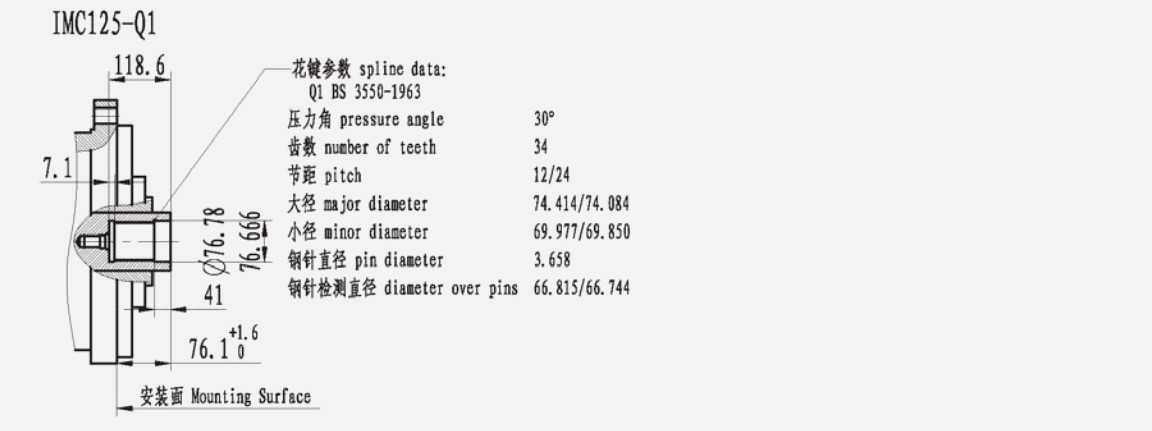

Dimensiones adscendens Data pro IMC125：

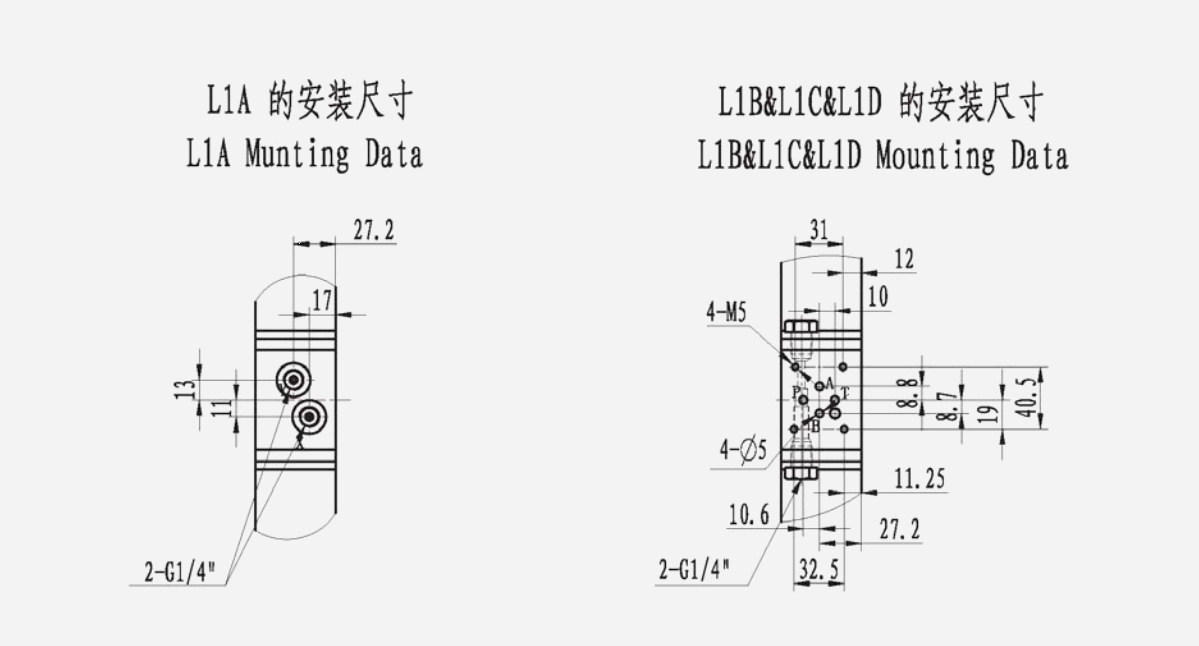

Variabilis Imperium scriptor Adscendens Data


TYPE: IMC200
APPELLATIO APPELLATIO 3100 2900 2800 2600 2400 2300 2100 2000 1800 600 500 300 1200 000 830 670 510 350 190 110
ml / r *
TRANSLATIO 		3080 2958 2796 2634 2472 2310 2148 1973 811 649 1487 1325 1163 00 839 677 515 353 191 109/0
N.M/Mpa
IN SPECIE TORQUE 		447 422 400 375 351 326 300 281 258 231 206 180 154 125 100 79 57 30 6 0
r/min
MAX.CONT.SPEED 		110 115 125 135 140 150 160 175 190 210 230 265 305 350 395 485 540 540 540 900
KW
MAX.CONT.POWER 		131 131 131 124 117 111 96 89 83 77 71 66 60 55 48 42 33 16 3 0
KM
MAX.CONT.POWER 		146 146 146 139 131 124 116 104 99 95 90 85 79 73 65 57 44 28 5 0
Mpa
MAX.CONT.PRESSURE 		21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE 		25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 15

Eget symbola

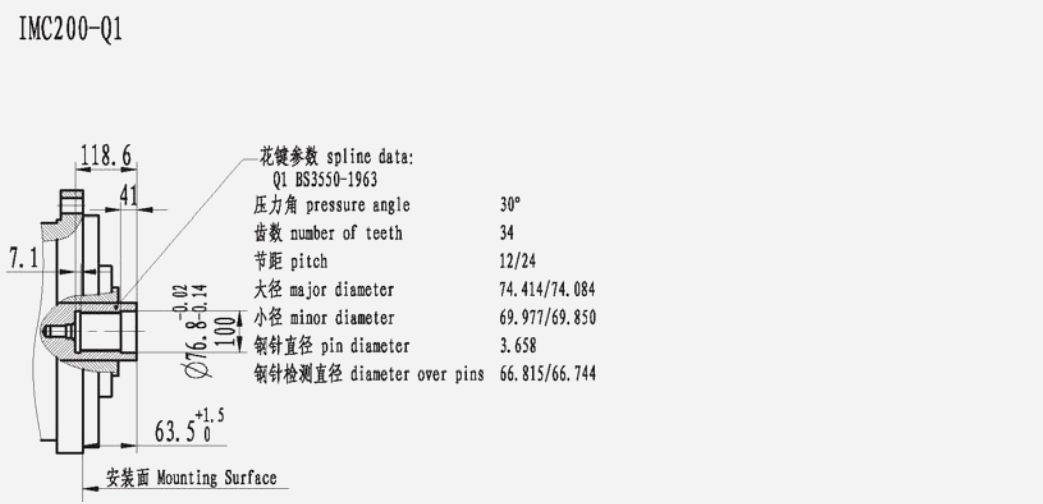

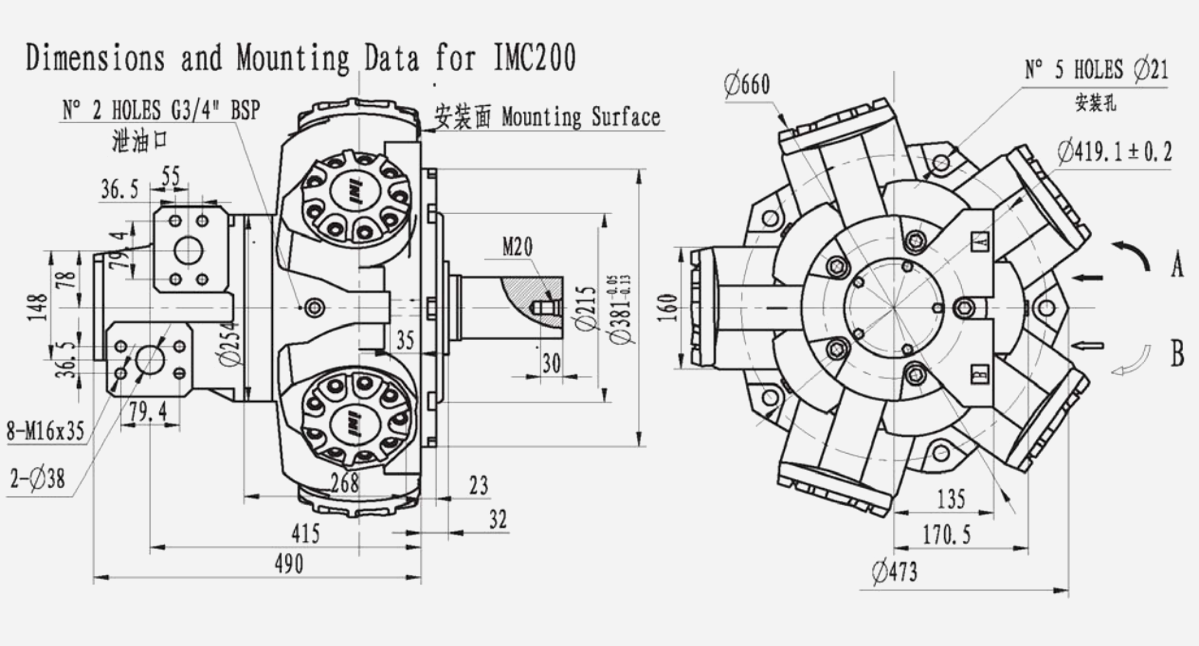

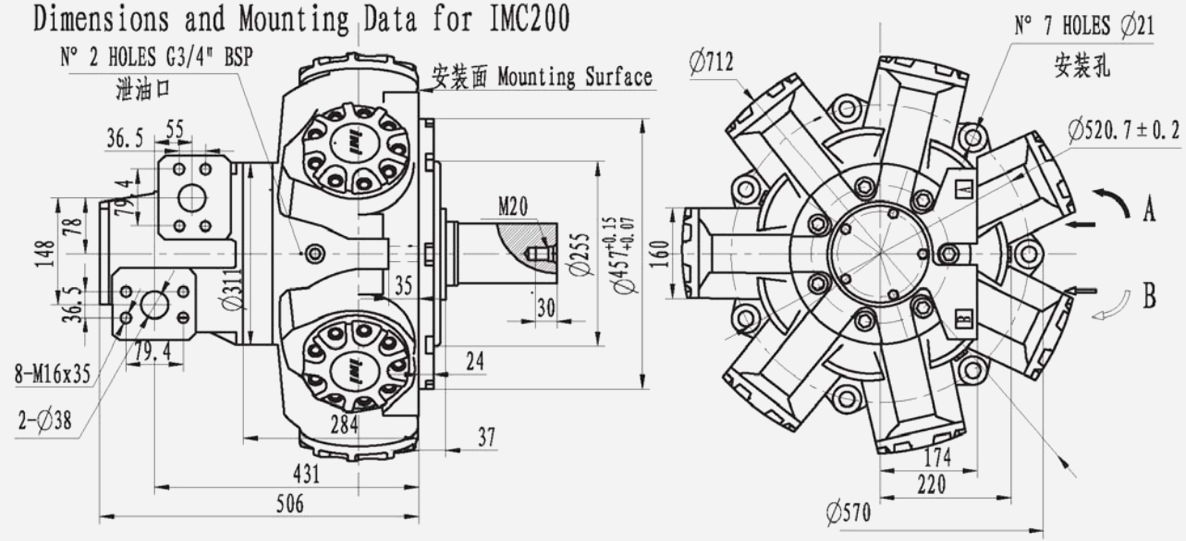

Dimensiones adscendens Data pro IMC200：
Variabilis Imperium scriptor Adscendens Data



APPELLATIO TRANSLATIO 4600 4100 3600 3300 3000 2600 2300 1900 1600 1400 970 680 340 170
ml / r *
TRANSLATIO 		4597 4086 3632 3291 2951 2610 2270 1930 1649 1362 965 681 340 170/0
N.M/Mpa
IN SPECIE TORQUE 		657 585 514 460 419 356 310 259 210 168 108 73 24 0
r/min
MAX.CONT.SPEED 		108 120 135 145 165 180 215 240 290 315 315 315 315 900
KW
MAX, CONT.POWER 		123 115 104 97 90 83 76 68 59 48 37 25 8 0
KM
MAX.CONT.POWER 		153 149 142 136 129 122 112 102 91 81 68 47 12 0
Mpa
MAX.CONT .PRESSURE 		21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX, TOP, PRESSUS 		25 25 25 25 25 25 25 25 25 25 25 25 25 15

Eget symbola

Dimensiones adscendens Data pro IMC200：
Adscendens variabilis Imperium scriptor Data:



TYPE:IMC325
APPELLATIO TRANSLATIO 5300 5100 4900 3600 3300 3000 2600 2300 1900 1600 1500 1400
ml / r *
TRANSLATIO 		5335 5108 4937 3632 3291 2951 2610 2270 1930 1646 1532 1362
N.M/Mpa
IN SPECIE TORQUE 		763 731 706 514 460 419 356 310 259 210 196 168
r/min
MAX.CONT.SPEED 		90 105 110 135 145 165 180 215 240 290 315 315
KW
MAX.CONT, POTESTAS 		123 123 123 104 97 90 83 76 68 59 54 48
KM
MAX.CONT.POWER 		153 153 153 142 136 129 122 112 102 91 87 81
Mpa
VAX.CONT .P RESSURE 		21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE 		25 25 25 25 25 25 25 25 25 25 25 15

Eget symbola

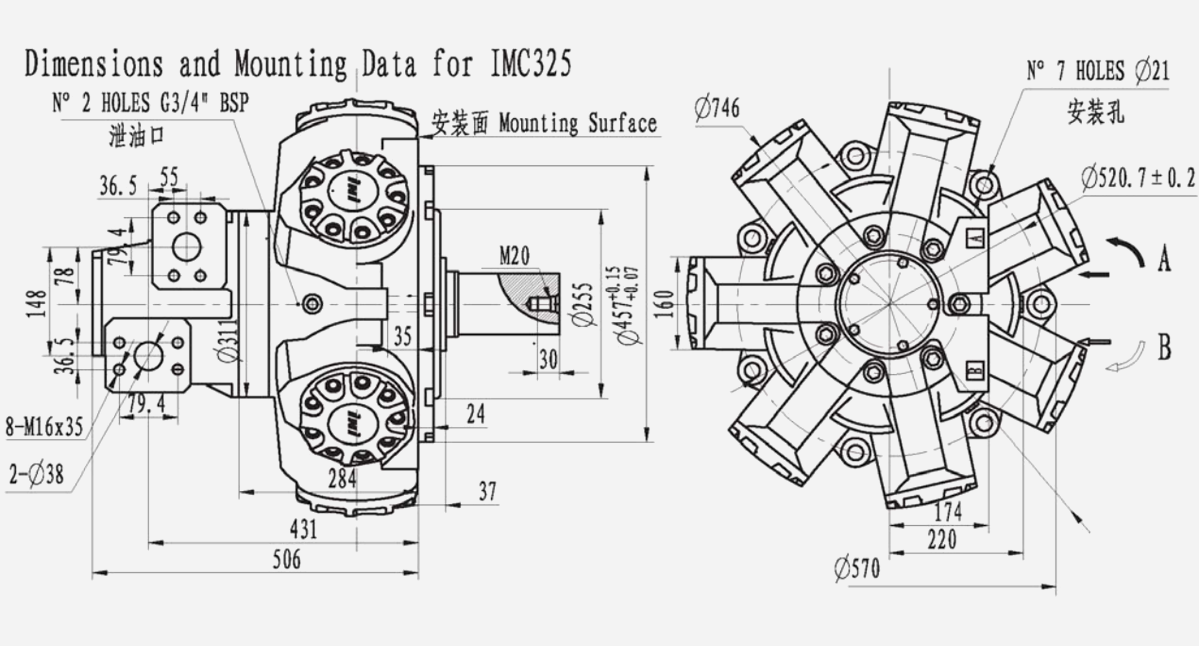

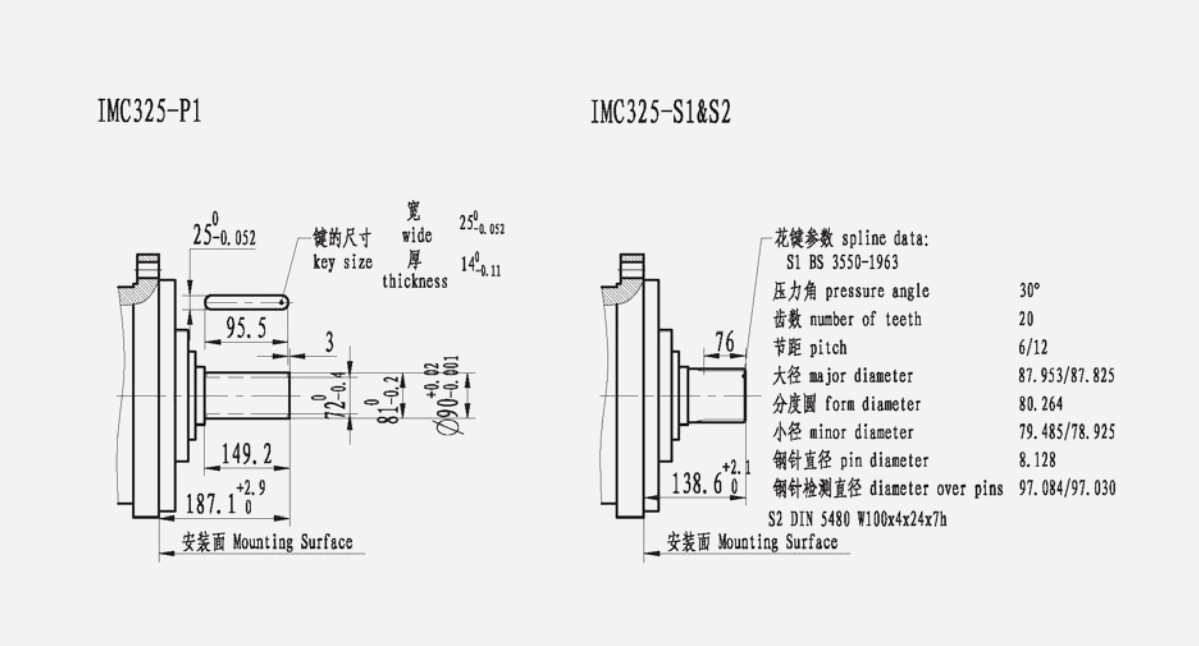

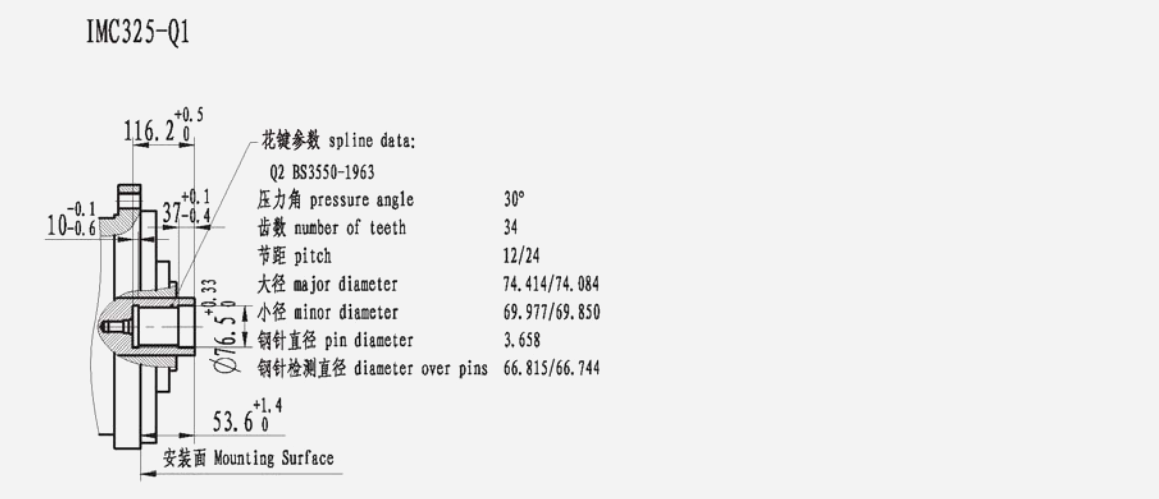

Dimensiones adscendens Data pro IMC325;

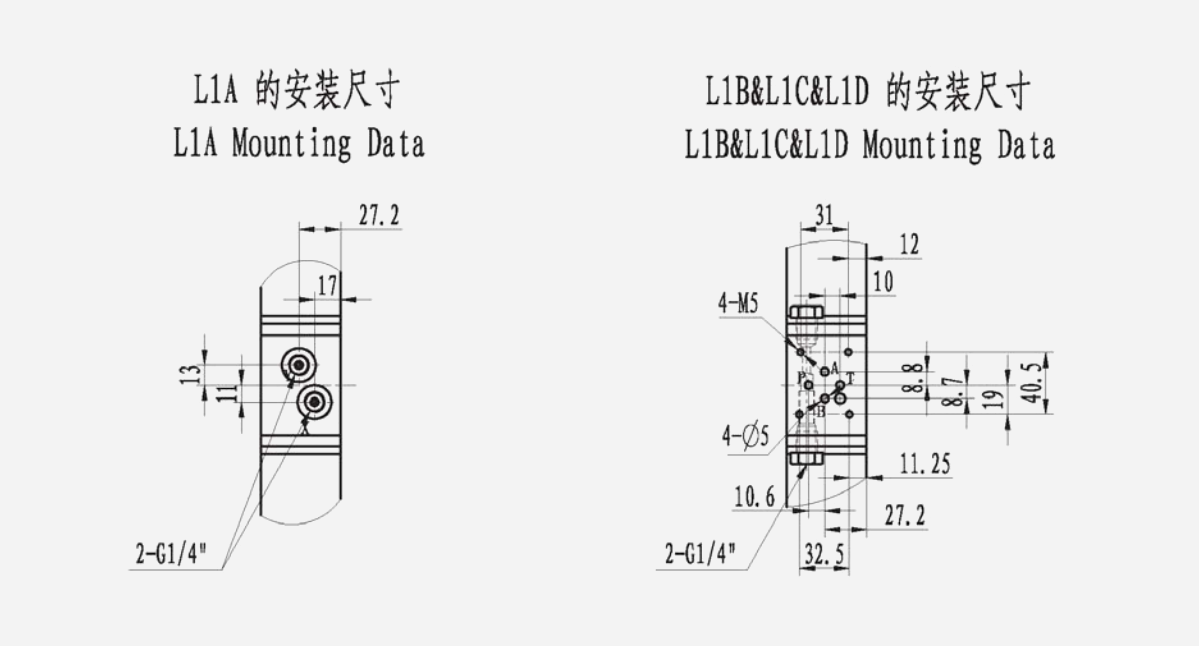

Variabilis Control's Adscendens Data:
