IGT60 Hydraulica Transmissio

Home / Products / Slewing Drives / IGT Series Track Motor / IGT60 Hydraulica Transmissio
  • IGT60 Hydraulica Transmissio
  • IGT60 Hydraulica Transmissio
  • IGT60 Hydraulica Transmissio
  • IGT60 Hydraulica Transmissio
  • IGT60 Hydraulica Transmissio
  • IGT60 Hydraulica Transmissio

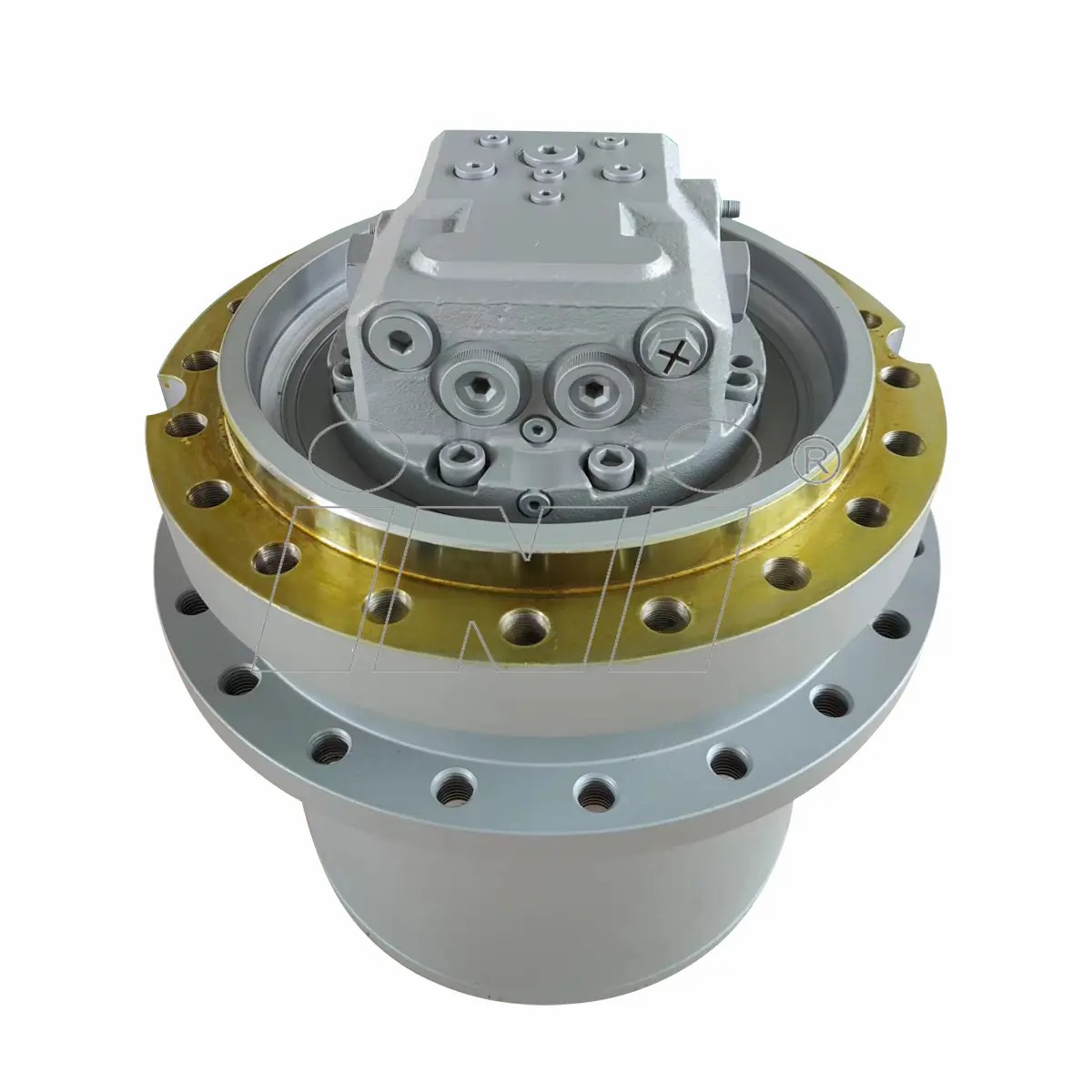

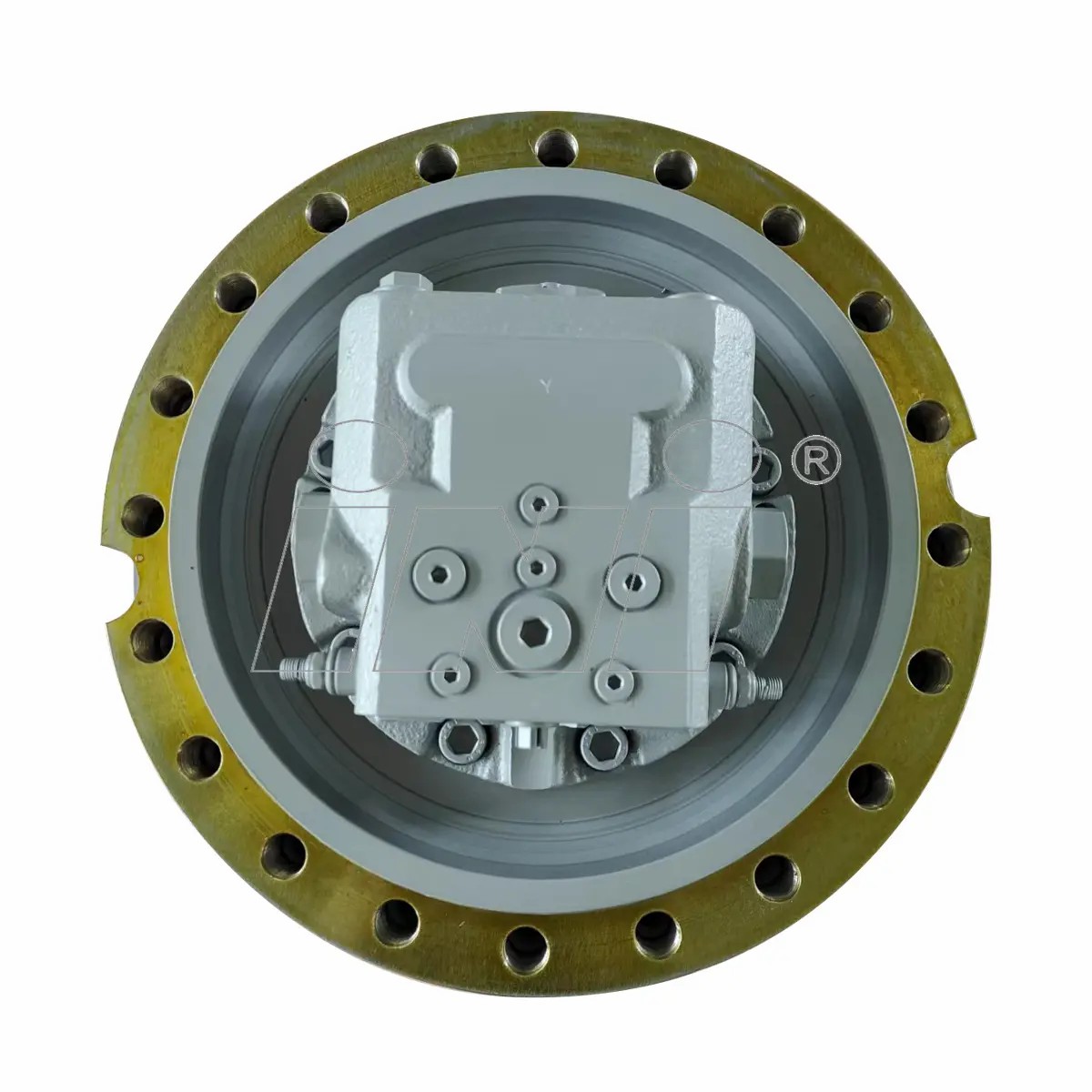

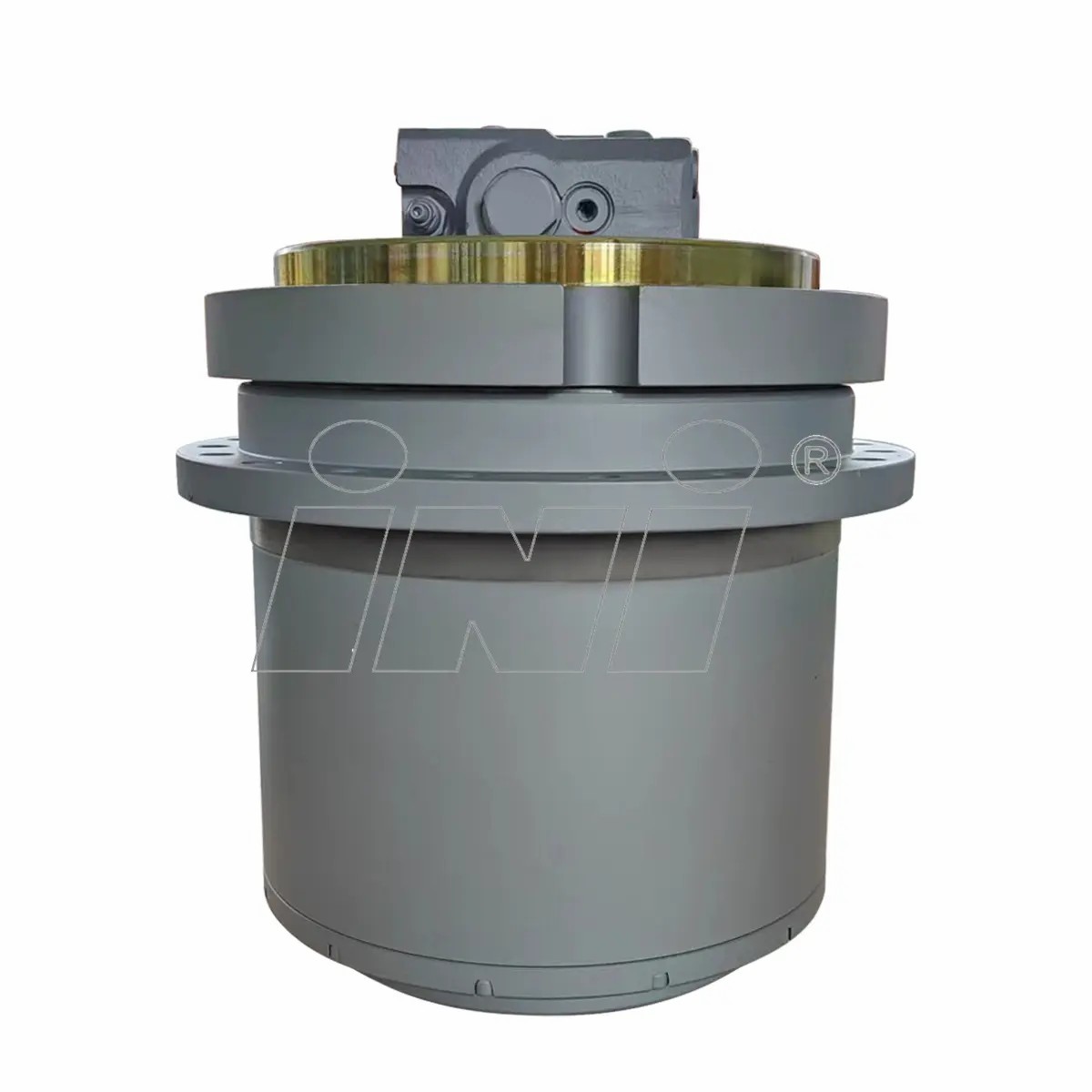

IGT60 Hydraulica Transmissio

IGT hydrostatic coegi series in varia disposito pistonis motoriis aedificato, multi discus fregit, calces planetarum, et clausus valvae functionis consistit. Agitationes pluma altae efficientiae, longae vitae, magnae constantiae, pacti designatio, altae pressionis operandi, et Hi-low celeritatem sistendi potestatem. Casus gyrationis genus peregrinationes agitet non solum directe institui potest intra trahens vel rotam, sed etiam adhiberi potest in capitis via vel machinis milling pro potestate conversionis agitet ac premunt agitet. Agitatoria nostra patented technologiam et experientiam consilio capiunt. Agitationes in hoc catalogo descriptae sunt vexillum genus. Aliae notationes variantes cum variis rationibus, dimensionibus et notis potentiae praesto sunt si ita postulatur pro applicationibus specificis. Agitationes late applicatae sunt in excavatis repens, grues reptans, machinis circinandi, via capitis, globulus viarum, vehicula vestiendi, rostra aerea, aggeribus terebra auto-propellere, ac prendere agitationes. Agitationes non solum a clientibus domesticis adhibitae sunt ut SANY, XCMG, YUTONG, sed etiam in Asiam Southeast, Orientem, Indiam, Coream Meridionalem, Nederlandiam, Germaniam, Russiam exportatae sunt, et sic porro.
Contact Us Download
Exemplar Optionum:
Options Exemplum:
IGT80T3-B99-172/111 repraesentat seriem coegi esse 80 cum maximo output torque de 80kNm, tres gradus calcei planetarii cum totali ratione 99, fractis discus multi- bris accommodatus, et motor axialis hydraulicus summus velocitatis. . Motor hydraulica variabilis obsessio (duarum celeritatum) 172ml/rev in positione humili velocitatis et 111ml/rev in positione alta velocitatis habet.
IGT60T3-1;

Maximilianus. Output Torque

Maximilianus. Totalis Displacement

Maximilianus. Motor Displacement

Ratio calces

Maximilianus. Celeritas

Maximilianus. Ratio

Maximilianus. Fluere

Maximilianus. Pressura

Mass

Lorem vehiculum Missam

N.m

ml/rev

ml/rev

rpm

Maximum / Maximum

L/min

MPa

Kg

Ton

60000

14832.3/5607

87.3/55.5

86.5·94.8
105.5·119.8
139.9·169.9

2800

Maximilianus. 1.8

150

35

300

25-40


IGT60T3-2;

Maximilianus. Output Torque

Maximilianus. Totalis Displacement

Maximilianus. Motor Displacement

Ratio calces

Maximilianus. Celeritas

Maximilianus. Ratio

Maximilianus. Fluere

Maximilianus. Pressura

Mass

Lorem vehiculum Missam

N.m

ml/rev

ml/rev

rpm

Maximum / Maximum

L/min

MPa

Kg

Ton

60000

29154.84

171.6/111

86.5·94.8
105.5·119.8
139.9·169.9

2800

Maximilianus. 1.8

150

35

300

25-40
