INl Rei sumus inter artifices professionales et quales artifices hydraulicos in Sinis.

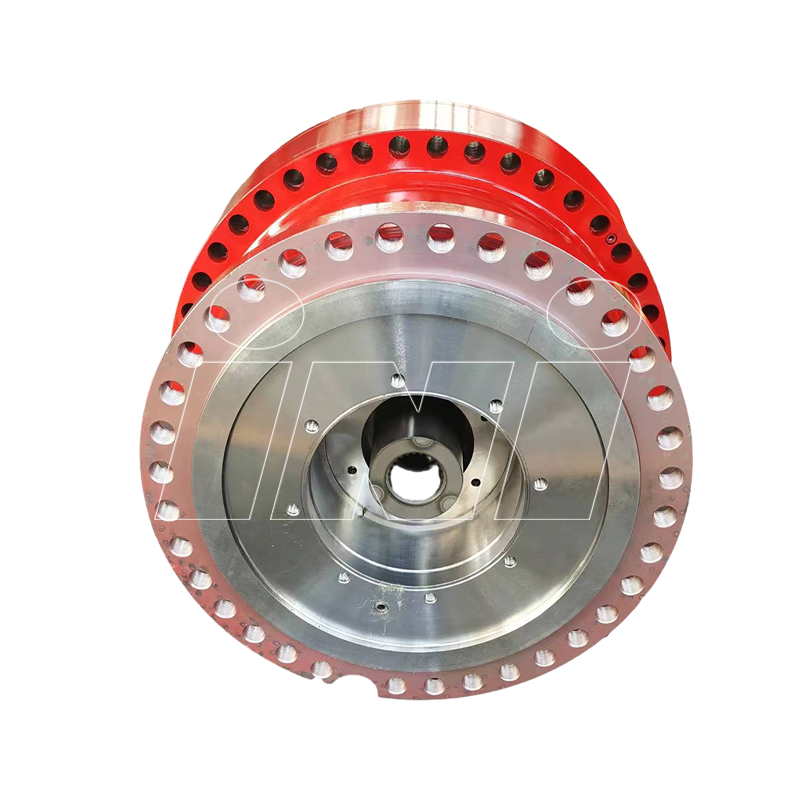

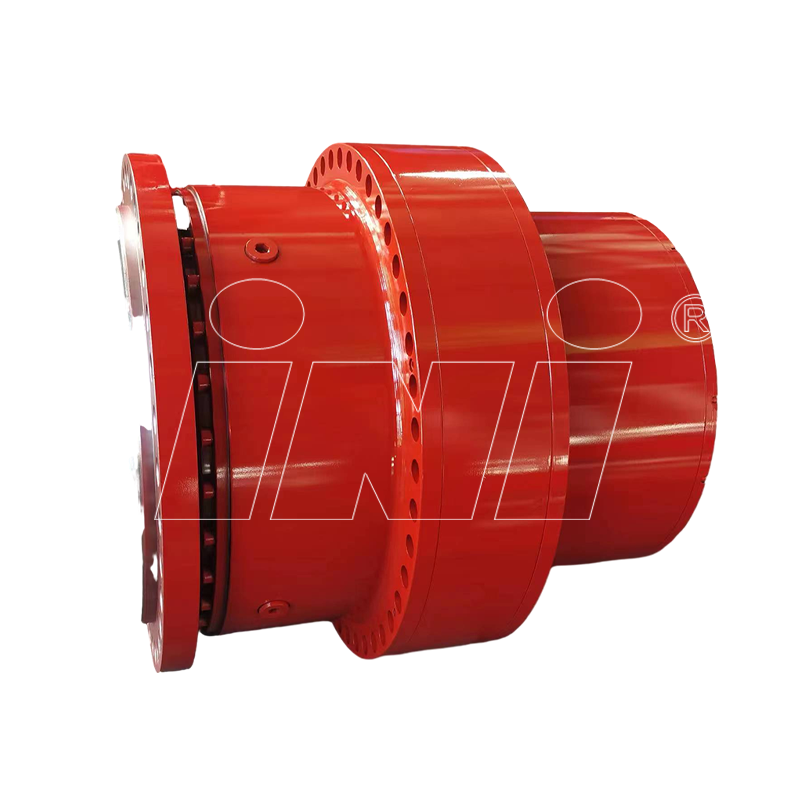

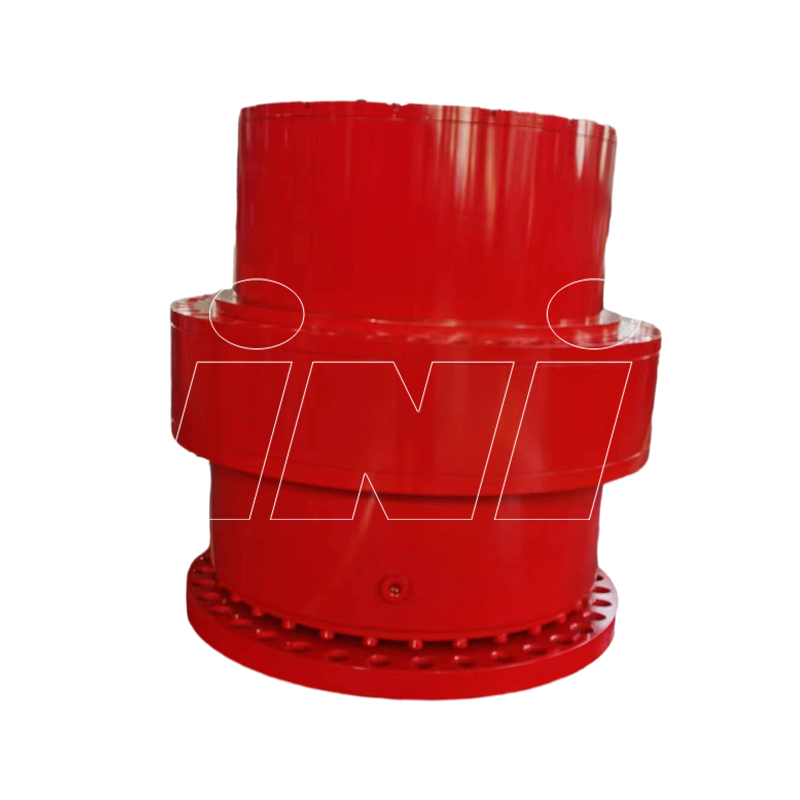

IGC-J Series Gearbox Planetarum ab Axial Rotating componens est speciale transmissio, quod protulit proocura in amplis condicionibus operandi. Substructio in longa experientia et spectata proventuum et applicationibus,

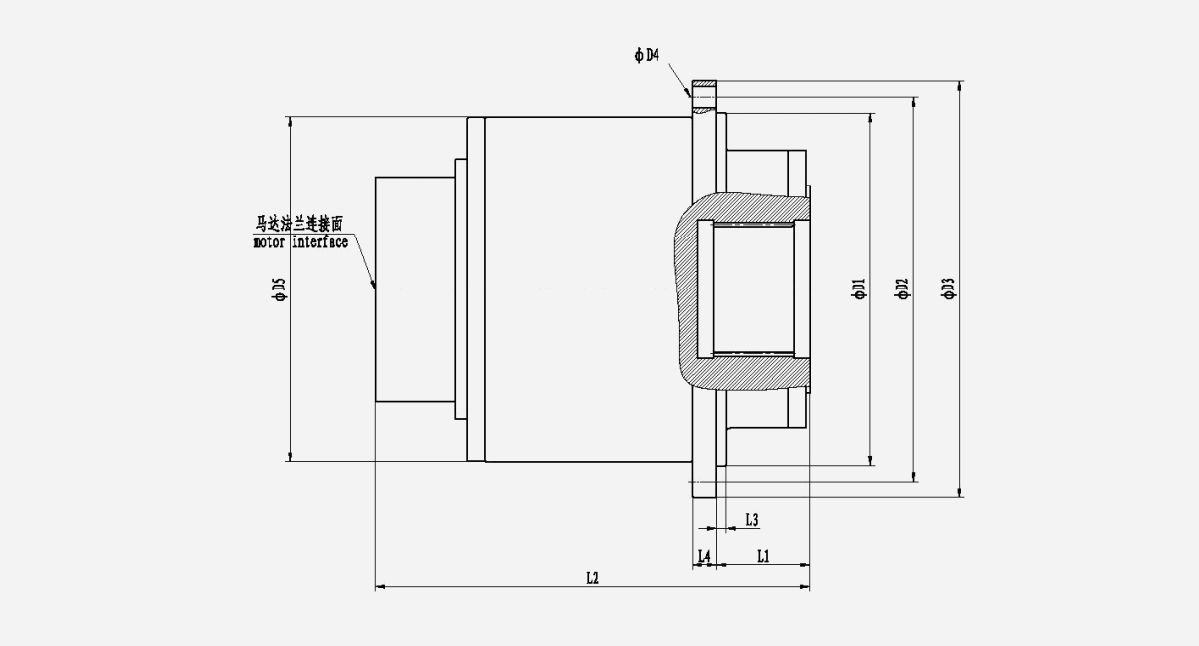

| Vide codicem | Output Torque | Ratio | Hydraulic Motor | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | |||||
| IGC60T3 | 42500 | 87.5·95.8·106.5·120.8·140.9 170.9 | A2FE80 | A2FM80 A2FM80 A2FM107 A2FM125 | INM1 INM2 INM3 | HMB010 HMB030 HMB045 | 380h8 | 410 | 440 | 20xφ22 | 370 | 84 | 419 | 30 | 30 | ||
| IGC80T3 | 67000 | 77.7·100·111.9·127.9·150.9 186.4 | A2FE101 | A2FM80 A2FM107 A2FM125 A2FM160 | INM2 INM3 INM4 | HMB030 HMB045 HMB060 | 440b8 | 480 | 520 | 20xφ26 | 430 | 116 | 541 | 12 | 30 | ||
| IGC110J3 | 100000 | 96.8·115.8·129.6·148.2·174.9 | A2FE107 | A2FM80 A2FM107 A2FM 125 A2FM 160 | INM3 INM4 | HMB060 HMB080 HMB100 HMB125 | 470b8 | 500 | 540 | 36xφ20 | 460 | 101 | 553 | 15 | 30 | ||
| IGC160J3 | 140000 | 80·94.6·101.3·109.2·119.1 131.5·162.8 | A2FE160 A2 45 180 A4FM250 A4FM500 | A2FM200 | INM4 INM5 INM6 | HMB100 HMB125 HMB 150 HMB 200 | 545b9 | 600 | 650 | 30rφ26 | 535 | 138 | 584 | 15 | 30 | ||
| IGC220J3 | 200000 | 89.3·96.5·105.4·116.5·121.8 146.4·189.9 | A2FE160 A2FE180 A4FM250 A4FM500 | A2FM25 A2FM355 A2FM500 A2FM200 A2FM250 A2FM355 500 | INM5 INM6 INM7 | HMB125 HMB150 | 610b9 | 680 | 735 | 24xφ33 | 610 | 85 | 587 | 23 | 45 | ||
| IGC550J4 | 410000 | 645.45 | A2FE160 A2FE180 A4FM250 A4FM500 | A2FM200 A2FM250 A2FM355 A2FM500 | A6VM160 A6VW200 A6VM250 A6VM355 | 810b8 | 850 | 900 | 36xφ33 | 798 | 463.5 | 1013.5 | 45 | 50 | |||
Producta comparata ab inceptis claris ab usoribus penitus creditae sunt.
Annos Industry Usus
Factory Area
Doctus Employees
Provectus Productio Linea
INI Hydraulic Co., Ltd. hydraulic winches, hydraulic motoribus et planetarum inter viginti annos specialisati sunt. We are one of the professional Construction Machinery Accessory Suppliers in Asia. Customizing to optimize customers' ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers' needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.
Fiducia productorum nostrorum valde in variis applicationibus probata est, non limitata machinae industriae, machinae constructionis, machinae navis & ornatae, apparatum littus, fodienda et metallurgica machina.
Praeterea productum qualitas nostra per plures terrarum inclitorum corporum testimonium approbata est. Testimonia, quae fructus nostri consecuti sunt, includunt EC-Type Examinationis certificatorium, BV INSTITUTUM, DNV GL Certificate, EC Attestationis Conformitatis, certificatorium Type Approval pro Marine Product et Lloyd's Register Quality Assurance. Hactenus, praeter Sinas, mercatum nostrum domesticum, fructus nostros late exportavimus in Civitatibus Foederatis, Germania, Nederlandia, Australia, Russia, Turcia, Singapore, Iaponia, Corea Meridiana, Malaysia, Vietnam, India et Irania. Logistics et post-venditio officia nostra totum mundum prompte et fideliter operiunt de profundis clientibus nostris.
Fructus nostri consecuti sunt, includuntur EXAMINATIO EC-Type certificatorium, BV, INSTITUTUM, DNV, GL Certificate, EC Conformitatis testimonium, certificatorium Type Approval pro Marine Product et Lloyd's Register Quality Assurance.
