INl Rei sumus inter artifices professionales et quales artifices hydraulicos in Sinis.

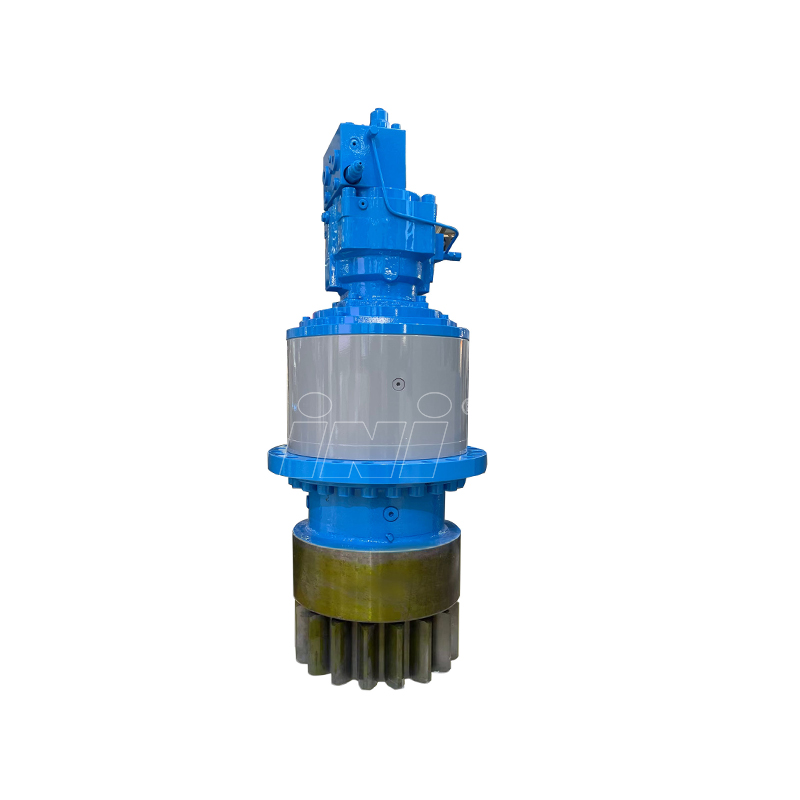

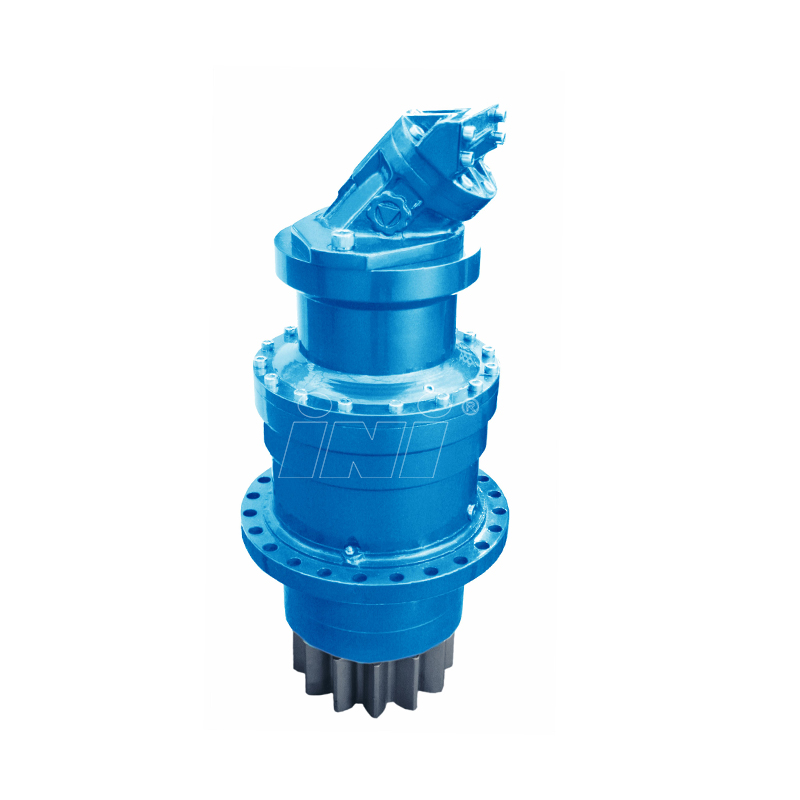

IGH Series HYDRAULICUS Coegi Slewing est specimen componentis impellendi ad excavatores rotatos vel reptans, aggerum terebrarum rotarium, grues reptans, grues vehiculi, grues marinae et alia instrumenta mobilia. Series operarum in ambitu arduis condicionibus arduis applicationis suam dignitatem probavit.
In serie linearum compactorum magnitudine, spatii-salutaris, altae efficientiae, longi muneris vita, multiplicis orbis tenentis integrata fregit, et simplex inscensio et sustentatio. OMNIBUS designatus calces optimized fabricandi et GENERALIS qualitas processuum fabricandi curet bonum onus-portandi facultatem et praestantem operandi fidem.
Series in hoc catalogo descriptae sunt regulae speciei. Aliae variantes rationes cum diversis rationibus, dimensionibus, et

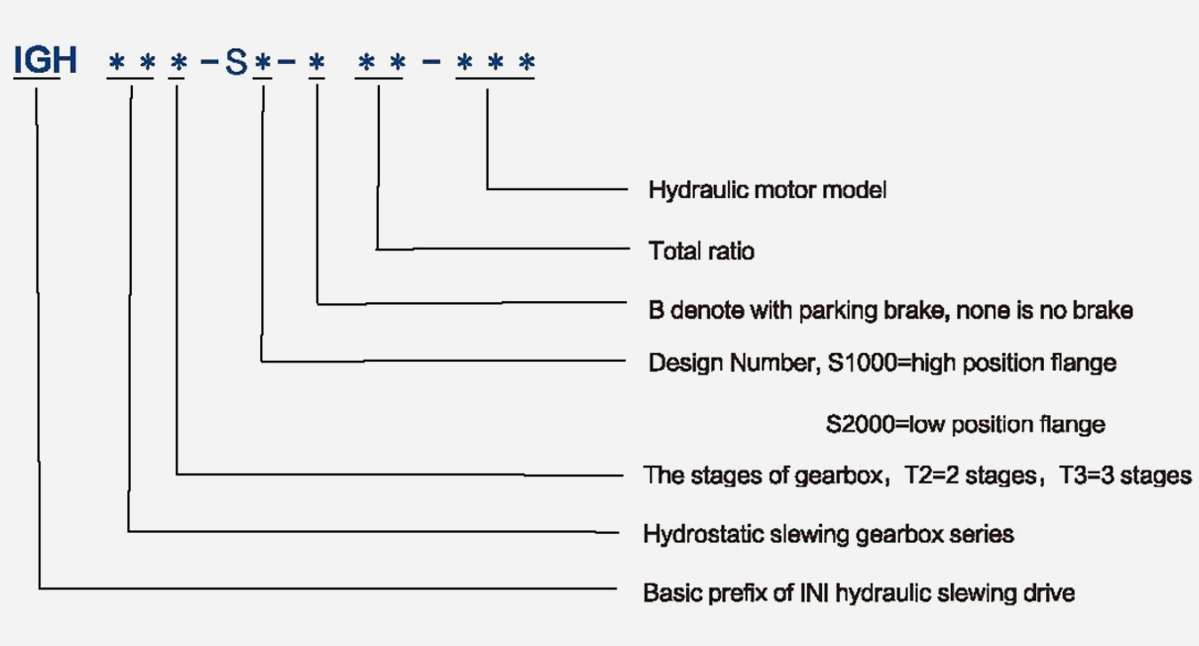

Opti*ons Exemplum:

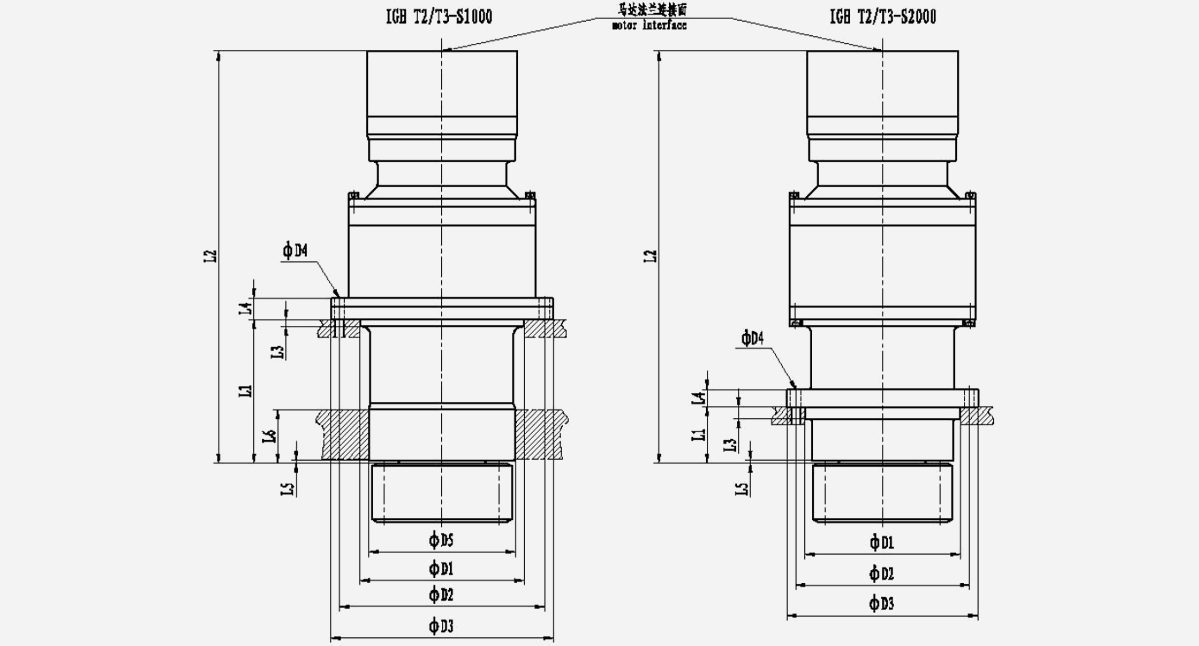

| Vide codicem | Output Torque | Ratio | Hydraulic Motor | Pondus kg | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | L5 | L6 | |||||
| IGH17T2-S1000 IGH17T2-S2000 | 12700 | 24.7·27.4·33.1·38.6·46.4·55 | A2FM45 | A2FE45 | H1CR45 | HMF28 | 130 | 255f7 | 290 | 320 | 16xφ18 | 230f7 | 200 | ≈517 | 8 | 38 | 5 | 60 | ||
| 230f7 | 258 | 282 | 20xφ13.5 | - | 80 | ≈517 | 60 | 38 | 5 | - | ||||||||||
| IGH17T3-S1000 IGH17T3-S2000 | 12700 | 65.2·78.9·89.2·103.6 | 150 | 255f7 | 290 | 320 | 16xφ18 | 230f7 | 200 | ≈517 | 8 | 38 | 5 | 60 | ||||||
| 230f7 | 258 | 282 | 20xφ13.5 | - | 80 | ≈517 | 60 | 38 | 5 | - | ||||||||||
| IGH24T3-S1000 | 17500 | 91.1·103.6·121,5·138.2 | 150 | 265h8 | 315 | 355 | 20φ17.5 | 230h8 | 245 | ≈598 | 15 | 34 | 8 | 75 | ||||||
| IGH36T2-S1000 IGH36T2-S2000 | 28500 | 18.37·24·28.93·45·49.1 | A2FM55 | A2FE56 | E1CR55 | HMF55 | 210 | 280h8 | 350 | 380 | 20xφ18 | 250h8 | 245 | ≈670 | 12 | 36 | 5 | 90 | ||
| 265h8 | 296 | 326 | 20xφ18 |
| 95 | ≈670 | 20 | 30 | 5 | - | ||||||||||
| IGH36T3-S1000 IGH36T3-S2000/1 IGH3613-S2000/2 | 28500 | 68·80.4·89.2·101·117.6 131.4·204 | 235 | 280h8 | 350 | 380 | 20xφ18 | 250h8 | 245 | ≈670 | 12 | 36 | 5 | 90 | ||||||
| 265h8 | 296 | 326 | 20xφ18 | - | 95 | ≈670 | 20 | 30 | 5 | - | ||||||||||
| 360h8 | 400 | 440 | 20xφ18 | - | 112 | ≈670 | 30 | 30 | 12 | - | ||||||||||
| IGH60T3-S1000/1 IGH60T3-S1000/2 IGH60T3-S2000 | 48500 | 80.8·87,5·95,8·106.5·120,8 · 14.9·170.9 | 500 | 400h8 | 490 | 542 | 16xφ22 | 325h8 | 279 | ≈763 | 25 | 40 | 19 | 114 | ||||||
| 300h8 | 370 | 410 | 20xφ22 | - | 96 | ≈775 | 78 | 30 | 18 | - | ||||||||||
| 400h8 | 490 | 542 | 16xφ22 | 325h8 | 450 | ≈729 | 25 | 40 | 19 | 114 | ||||||||||
| IGH80T3-S1000/1 IGH80T3-S1000/2 IGH80T3-S2000 |
68300 | 77.7·100·111.9·127.9·150.9 186.4·253.8 | A2FM80 A2FM107 A2FM125 | A2FE80 A2FE90 A2FE107 | H1CR75 | HMF75 | 620 | 440f7 | 480 | 515 | 24xφ26 | 370h7 | 314 | ≈885 | 14 | 40 | 21 | 162 | ||
| 635 | 490h8 | 535 | 580 | 24xφ26 | 440h8 | 491 | ≈930 | 25 | 27 | 18 | 168 | |||||||||
| 620 | 370h8 | 480 | 530 | 24xφ22 | - | 100 | ≈885 | 88 | 55 | 12 | - | |||||||||
| IGH110T3-S1000 IGH110T3-S2000 | 93300 | 96.8·115.8·129.6·148.2·174.9 216·312 | A2FM125 | A2FE107 | HMF135 | 645 | 475f7 | 520 | 570 | 24xφ26 | 440h7 | 449 | ≈950 | 20 | 40 | 20 | 160 | |||
| 490f7 | 544 | 594 | 24xφ26 | - | 170 | ≈928 | 20 | 40 | 15 | - | ||||||||||
| IGH160T3-81000 | 136500 | 183·228·252 | 1025 | 545b9 | 600 | 650 | 30xφ26 | 425h9 | 314 | ≈986 | 15 | 40 | 14 | 184 | ||||||
| IGH220T3-S1000 | 213000 | 98.7·146.4·189.9·247·294 | 1285 | 620b9 | 670 | 710 | 26xφ26 | 460h9 | 588 | ≈1301 | 20 | 50 | 10 | 160 | ||||||
Producta comparata ab inceptis claris ab usoribus penitus creditae sunt.
Annos Industry Usus
Factory Area
Doctus Employees
Provectus Productio Linea
INI Hydraulic Co., Ltd. hydraulic winches, hydraulic motoribus et planetarum inter viginti annos specialisati sunt. We are one of the professional Construction Machinery Accessory Suppliers in Asia. Customizing to optimize customers' ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers' needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.
Fiducia productorum nostrorum valde in variis applicationibus probata est, non limitata machinae industriae, machinae constructionis, machinae navis & ornatae, apparatum littus, fodienda et metallurgica machina.
Praeterea productum qualitas nostra per plures terrarum inclitorum corporum testimonium approbata est. Testimonia, quae fructus nostri consecuti sunt, includunt EC-Type Examinationis certificatorium, BV INSTITUTUM, DNV GL Certificate, EC Attestationis Conformitatis, certificatorium Type Approval pro Marine Product et Lloyd's Register Quality Assurance. Hactenus, praeter Sinas, mercatum nostrum domesticum, fructus nostros late exportavimus in Civitatibus Foederatis, Germania, Nederlandia, Australia, Russia, Turcia, Singapore, Iaponia, Corea Meridiana, Malaysia, Vietnam, India et Irania. Logistics et post-venditio officia nostra totum mundum prompte et fideliter operiunt de profundis clientibus nostris.
Fructus nostri consecuti sunt, includuntur EXAMINATIO EC-Type certificatorium, BV, INSTITUTUM, DNV, GL Certificate, EC Conformitatis testimonium, certificatorium Type Approval pro Marine Product et Lloyd's Register Quality Assurance.
